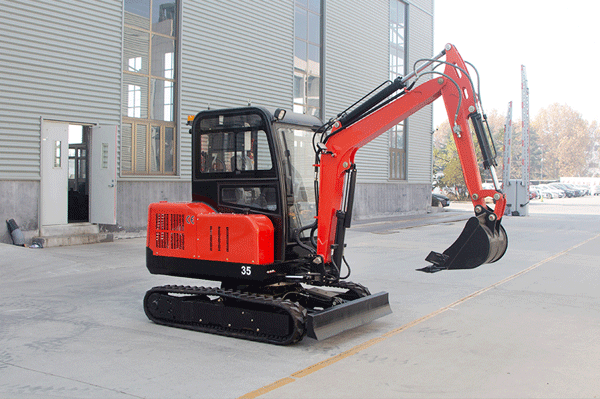

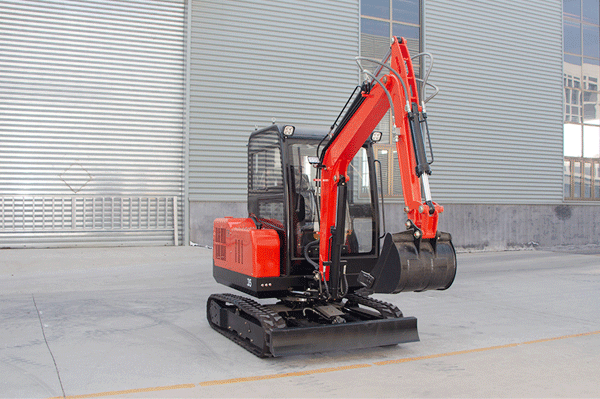

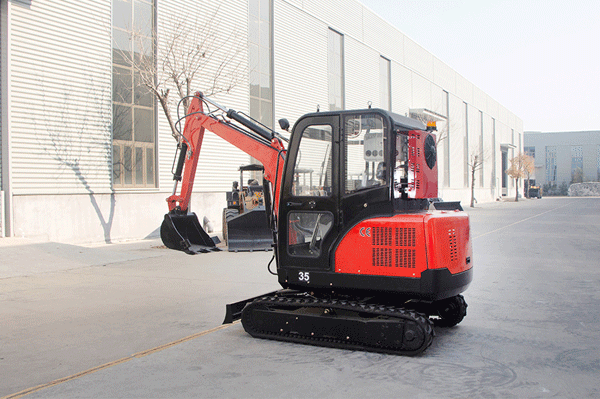

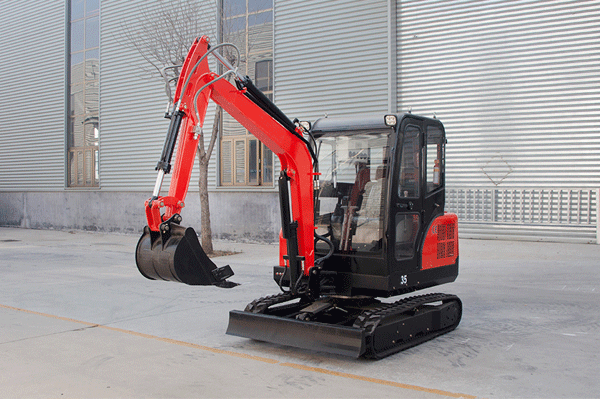

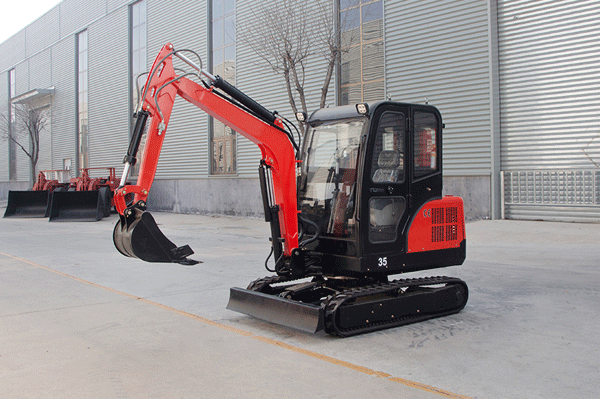

JT35 Mini Excavator | Heavy-Duty Power, Compact Precision

36.8 kW Xinchai Engine | 3,058mm Digging Depth | 0.1m³ High-Capacity Bucket

Maximum Output for Demanding Jobs

The JT35 mini excavator is engineered for operators who require the output of a heavy-duty machine within a compact frame. Boasting a powerful 36.8 kW Xinchai engine, this model is the ultimate workhorse for professional trenching, utility installation, and large-scale site preparation.

Technical Specifications

Model	JT35
Engine Brand	Xinchai
Rated Power	36.8 kW
Bucket Capacity	0.1 m³
Swing Speed	10 r/min
Max. Digging Radius	4,477 mm
Max. Digging Depth	3,058 mm
Max. Digging Height	3,445 mm
Max. Unloading Height	2,203 mm
Min. Swing Radius	2,165 mm

Why Choose the JT35 Mini Excavator?

Unmatched Power: The 36.8 kW Xinchai engine provides professional-grade torque and consistent daily output, outperforming standard compact units.
Extended Working Range: A 4,477 mm digging radius and 3,058 mm depth offer exceptional coverage for utility work and deep trenching.
High-Efficiency Maneuverability: Featuring a 10 r/min swing speed and 2,165 mm minimum swing radius, it excels in tight construction zones where agility is key.
Optimized Load Cycles: With a 0.1 m³ bucket and 2,203 mm unloading height, spoil removal and truck loading are completed with maximum efficiency.
Versatile Application: From heavy landscaping to routine construction, the JT35 is the balanced solution for users needing one reliable machine for multiple tasks.
