Self weight: 16.5 T
Dimensions: 7.35 * 2.13 * 2.68 m
Max operating radius: 23 m

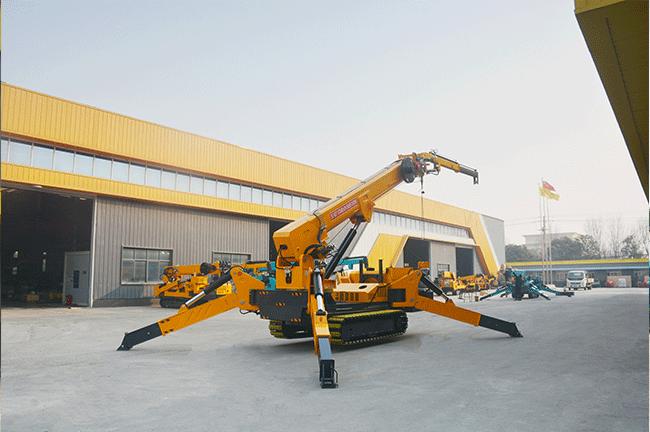

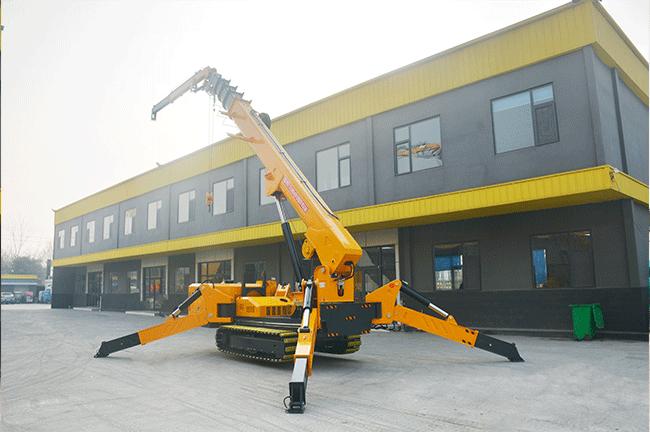

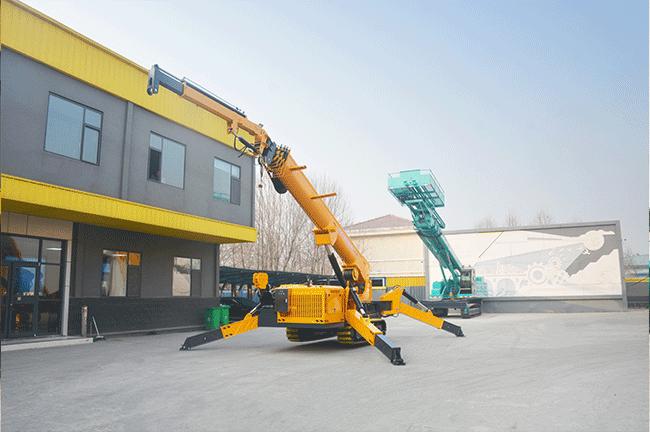

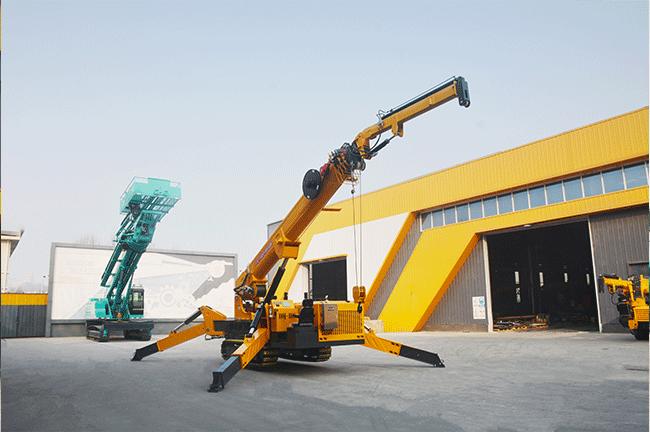

When standard heavy cranes fail to access narrow job sites, the JTZD-16T spider crane takes over. Boasting 16 ton lifting capacity, 25m maximum lifting height and a narrow chassis design, it perfectly fits indoor installation, industrial hoisting and complex terrain operations, solving the positioning difficulties of large traditional cranes.

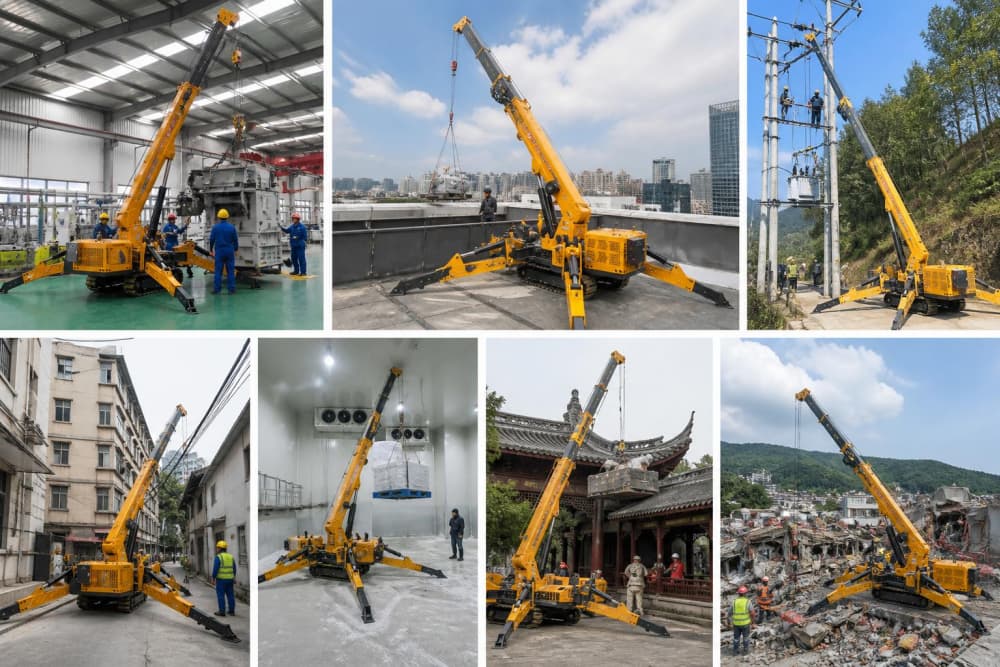

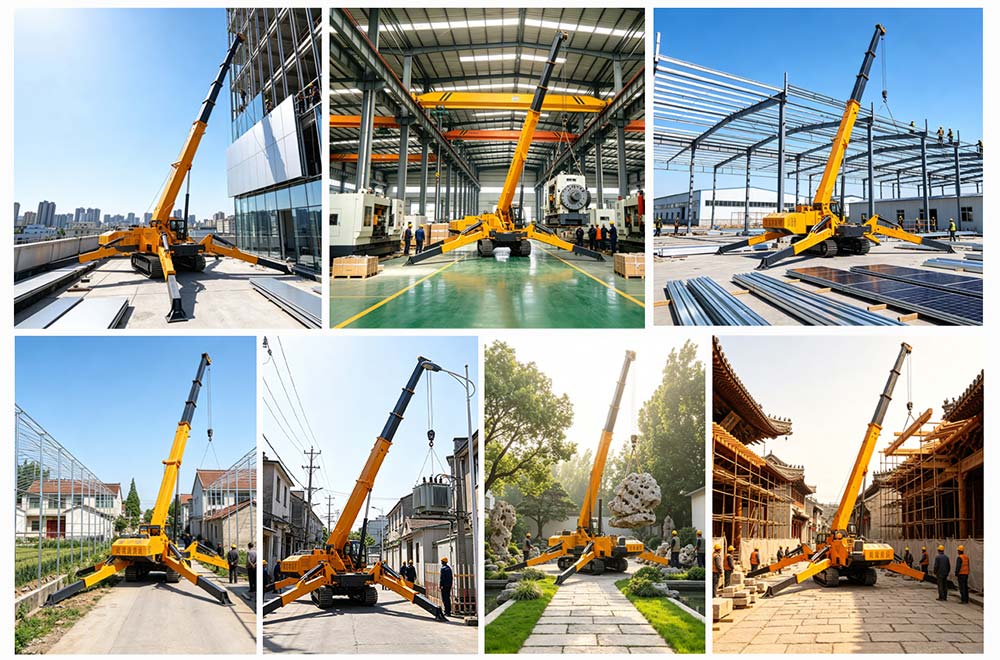

Indoor lifting | Industrial installation | Structural assembly | Narrow-site works | Complex terrain operation | Mechanical maintenance
| Model | JTZD-16T |
| Lifting Capacity | 16 t |
| Max Lifting Height | 25 m |
| Max Operating Radius | 23 m |
| Engine | Yuchai 85 kW |
| Overall Dimensions | 7350 × 2130 × 2680 mm |
Equipped with 16t rated load capacity and 25m vertical lifting height, it easily handles steel structure installation, facade hoisting and industrial equipment placement. The 23m super-wide operating radius allows flexible operation around obstacles, no frequent repositioning required.
Dual-speed winch with 10m/min hoisting speed and 4-rope configuration ensures stable, accurate load control. Matched with premium 12mm thick steel wire rope, it guarantees long-duration, high-altitude lifting safety and durability.

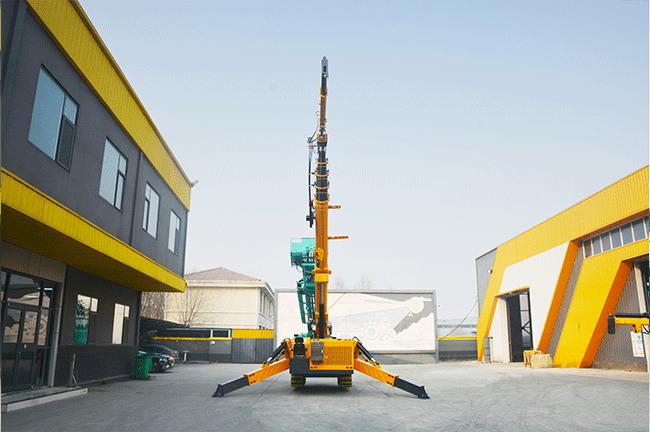

5-section telescopic boom extends to 12.3m in only 40 seconds, realizing rapid height adjustment. Flexible boom structure adapts to diverse working scenarios, greatly improving on-site construction efficiency.
Featured with streamlined overall dimensions, it effortlessly enters factories, building interiors and narrow construction areas. The compact layout balances heavy lifting capacity and site accessibility, ideal for limited-space projects.
Yuchai 85kW high-power engine delivers stable power output for walking, hoisting and hydraulic linkage. Supporting 12V 45Ah battery ensures quick startup and long-term stable operation in harsh working conditions.
Direct factory supply with customized configuration and competitive wholesale terms. We support bulk orders and global distributor cooperation, feel free to contact us for detailed parameters, quotation and delivery arrangement.
Shandong Jutop Heavy Industry Technology Co., Ltd. is a national high-tech heavy machinery manufacturer founded in 2013. Equipped with a 50,000㎡ workshop and over 300 professionals, we specialize in R&D and export of construction machinery, drilling rigs and generators. Boasting 200+ patents and global certifications, our products are exported to over 120 countries, dedicated to supplying reliable cost-effective equipment for worldwide clients.
