Lift height:7000mm
Maximum lift capacity: 3500kg
TEngine rate power:76kW
Back to List

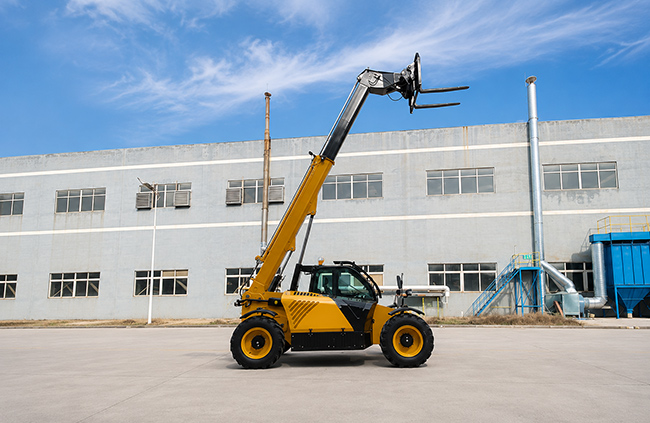

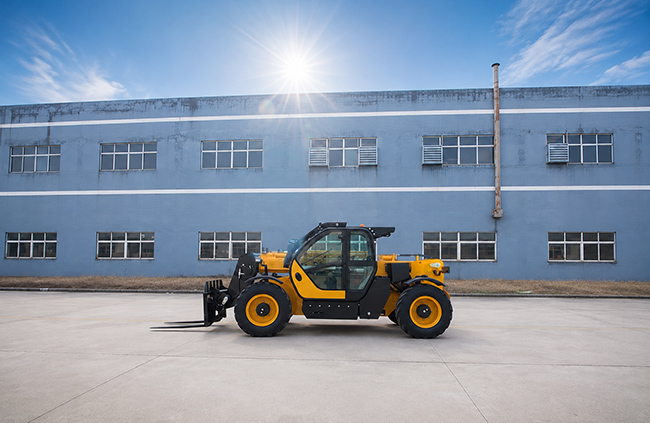

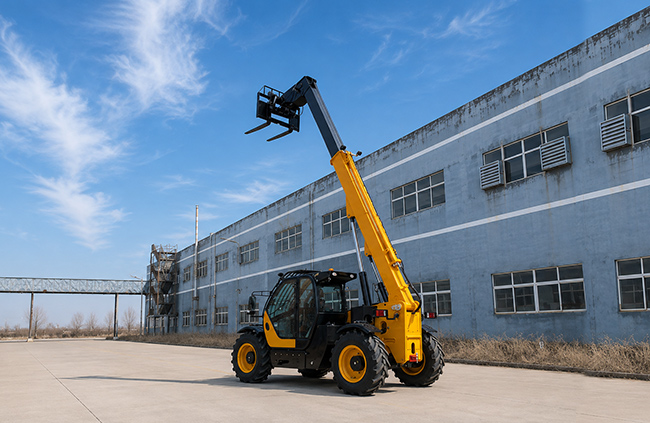

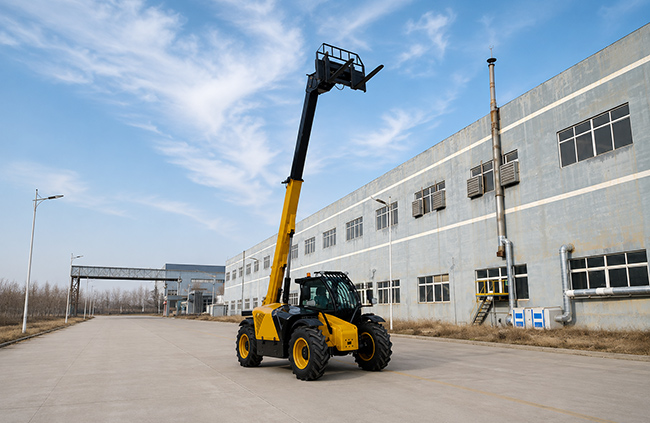

7.0m Working Reach | 3,500kg Heavy Lift | 76kW Turbo Diesel | EPA & Euro 5 Ready
| Model | JTTR-735[cite: 3] |
| Max Lift Capacity | 3,500 kg |
| Max Lift Height | 7,000 mm |
| Max Forward Reach | 3,600 mm |
| Standard Engine | Yunnei YN38GBZ (76 kW) |
| Operating Weight | 7,200 kg |
| Reach at Max Lift Height | 450 mm |
| Carriage Tilt Angles | Rollback: 42.6° | Dump: 37.5° |
| Optional Engines | FPT F36 (75kW), Kohler KDI2504TCR, Cummins (4BT / QSB / QSF), Changchai (EPA4 / Euro 3 / Euro 5) |
| Overall Dimensions (L×W×H) | 4,650 × 2,150 × 2,300 mm (to carriage) |
| Length to Front Tires | 4,200 mm |
| Wheelbase / Front Track | 2,850 mm / 1,750 mm |
| Ground Clearance | 350 mm |
| Outside Turning Radius | 4,250 mm (over tires)[ |
| Tire Size | 16/70-24 |
| Pallet Fork Length | 1,220 mm |
| Cab Internal Width | 800 mm |
| Container Loading | 1 Unit / 20GP Container |
| Lead Time & Warranty | Within 30 Working Days | 1 Year / 1,200 Working Hours |

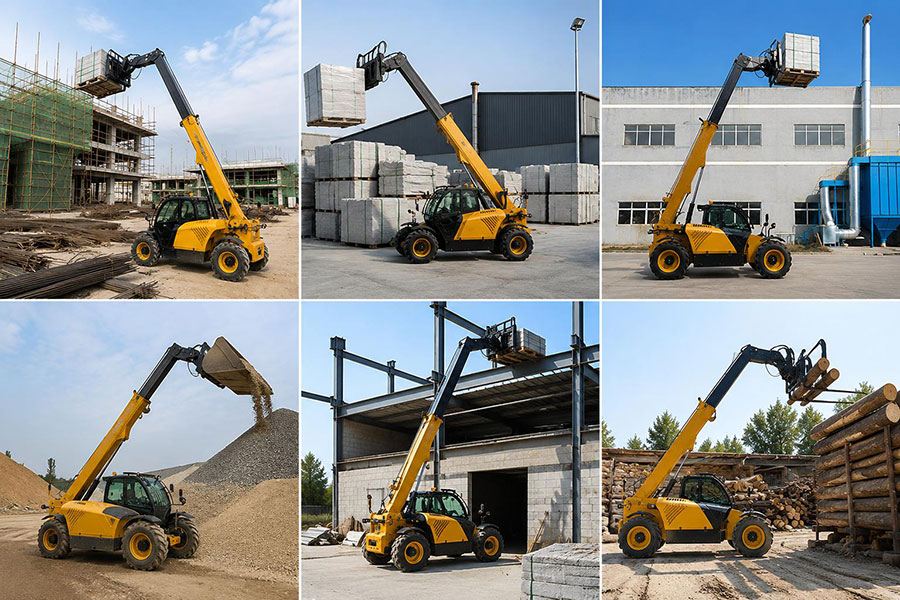

✔ 3.5-Ton Payload Capacity: Reinforced chassis and 7.0m boom accommodate heavier construction pallets and agricultural bulk loads.
✔ Heavy-Duty Ground Grip: Larger 24-inch tires combined with 350mm clearance provide dependable traction across wet and muddy ground.
✔ Compact 20GP Container Fit: Direct loading into standard 1×20GP containers lowers ocean shipping and handling charges.
✔ Fast Deployment: Rapid 30-working-day production cycle ensures on-time equipment delivery for upcoming projects.
✅ Global Quality: Certified equipment (CE, ISO) designed for extreme conditions.
✅ Constant Innovation: Over 200 patents focused on efficiency and durability.
✅ Your Trusted Partner: Direct factory supply with technical support and global logistics.
