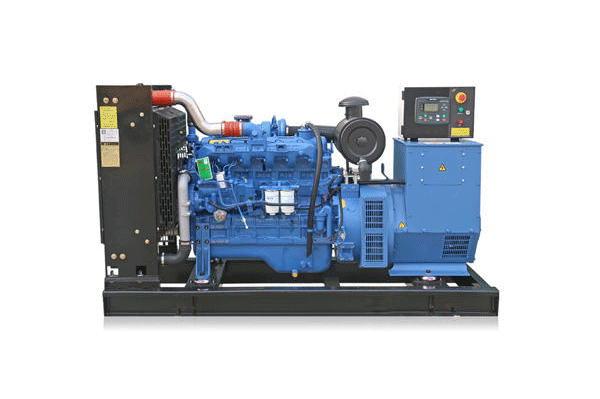

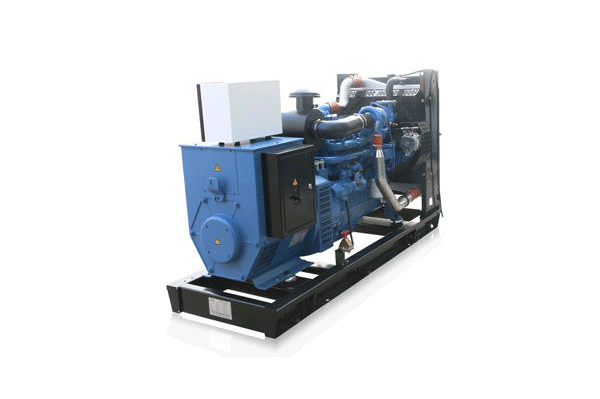

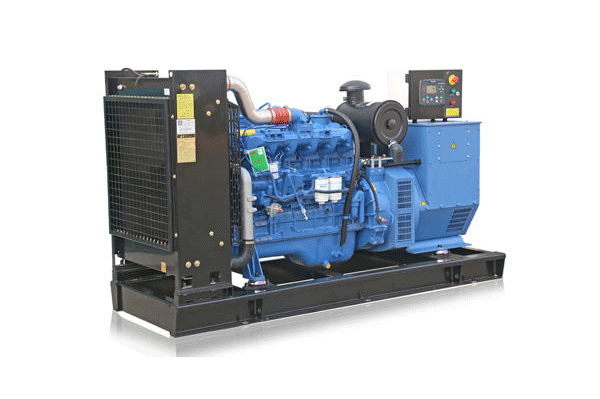

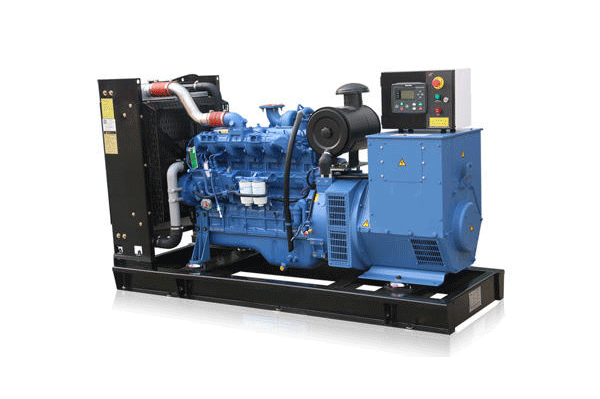

JT-100KW Yuchai Industrial Generator
100kW Prime Power | Premium Entry-Level Performance for Telecom, Retail, and Small Industrial Sites
- Engine: Yuchai YC4A190-D30 4-Cylinder
- Output: 100kW Prime / 110kW Standby
- Runtime: 17 Hours @ 75% Load
- Certifications: Global Standard Compliance (ISO, CE, SONCAP, etc.)
Product Overview
The JT-100KW is a high-performance entry-level industrial generator powered by the reliable Yuchai YC4A190-D30 engine. Designed to provide industrial-grade stability at an entry-level budget, this unit is the perfect choice for small factories, telecom base stations, and commercial backup systems. With its 500-hour maintenance cycle and superior power quality, it offers a robust, cost-effective solution for users who demand long-term reliability without compromise.
Technical Specifications
| Category | Specification |
|---|---|
| Model | JT-100KW |
| Prime Power | 100 kW / 125 kVA |
| Standby Power | 110 kW / 137.5 kVA |
| Voltage | 400/230 V |
| Rated Current | 180 A |
| Frequency | 50 Hz |
| Engine Model | Genuine Yuchai YC4A190-D30, 4-Cylinder In-Line Turbocharged |
| Displacement | 4.837 L |
| Bore × Stroke | 108 mm × 132 mm |
| Compression Ratio | 17.5:1 |
| Cycle Type | 4-Cycle Diesel |
| Engine Rated Speed | 1500 RPM |
| Peak Torque @1500RPM | 650 N·m |
| Cooling System | Water-Cooled |
| Engine Oil Capacity | 14 L |
| Start Motor Voltage | 24V DC |
| Alternator Brand & Type | Stamford/Marathon, Brushless, Self-exciting, H-Class Insulation, 3-Phase |
| Phase & Connection | 3-Phase 4-Wire |
| Power Factor | 0.8 (lagging) |
| Insulation Class | Class H |
| Protection Grade | IP21 |
| Total Harmonic Distortion (THD) | <5% |
| Fuel Consumption (100% Full Load) | 206-214 g/kW·h |
| Fuel Tank Capacity | 320 L / ≈17-hr @ 75% Load |
| Scheduled Maintenance Interval | 500 Working Hours |
| Noise Level | 68-70 dB(A) @ 1 Meter |
| Max Operating Altitude | ≤ 1000 m |
| Max Parallel Units | Up to 8 Units (IEC 8528-5) |
| ATS Compatibility | Yes |
| Transport Dimensions | 4000 × 1800 × 2200 mm |
| Overall Weight | 2.9 t |
| Certifications | ISO9001 · CE · SONCAP · PVoC · NRCS · SIRIM · SNI · TISI |
| Lead Time | 45-50 Working Days + 40-50 Days Ocean Freight |
| Payment Term | 30% Advance, 70% Before Shipment |
Core Advantages
1. Premium Industrial Standards
Don't let the entry-level budget fool you. By utilizing genuine Yuchai engines and premier alternators, the JT-100KW delivers true industrial-grade performance with a 10% overload margin, avoiding the power attenuation common in low-cost alternatives.
2. 650 N·m Anti-Stall Torque
With a robust 650 N·m torque reserve, this unit handles the sudden surge of multiple motors (pumps, fans, compressors) starting simultaneously, preventing the annoying shutdowns that plague lesser generators.
3. 17-Hour Extended Autonomy
The 320L fuel tank coupled with exceptional efficiency provides 17 hours of continuous power. This makes it an ideal "install and forget" solution for remote telecom stations and isolated facilities, significantly reducing site visits.
4. Clean Power for Sensitive Electronics
With THD<5%, the power output is safe for modern communication devices, medical equipment, and precision office electronics, ensuring your sensitive hardware never experiences harmonic-related interference.
5. 500-Hour Maintenance Interval
By extending the service cycle to 500 hours, we minimize your ongoing operational costs and labor requirements—a vital advantage for high-utilization users and distributed multi-site operations.
Get a Custom Quote
Factory-direct pricing, customized configurations, and full global logistics support. Guaranteed response within 48 business hours.
