Lifting height: 3 m
Fork length: 1070 mm
Max lifting capacity: 3500 kg

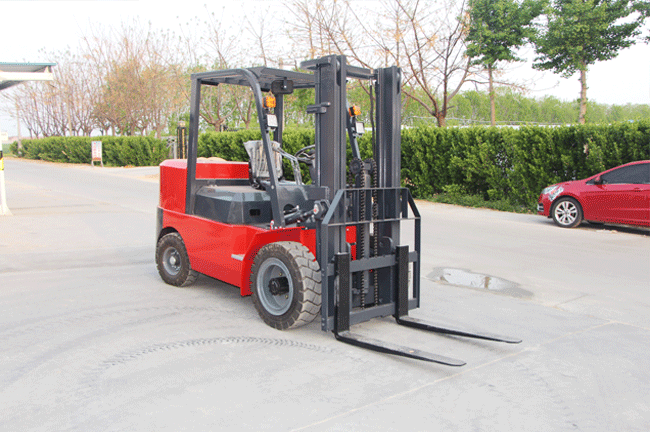

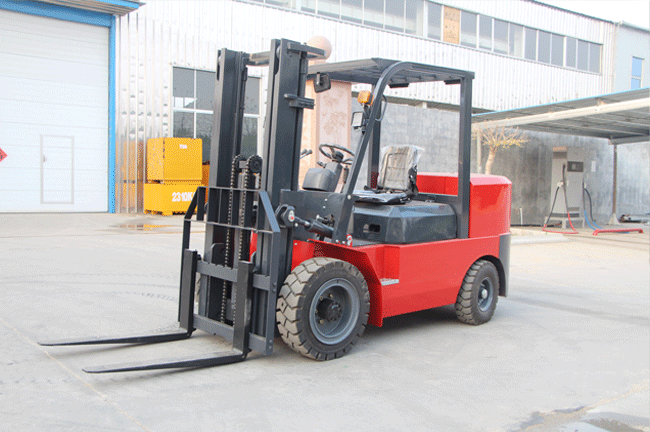

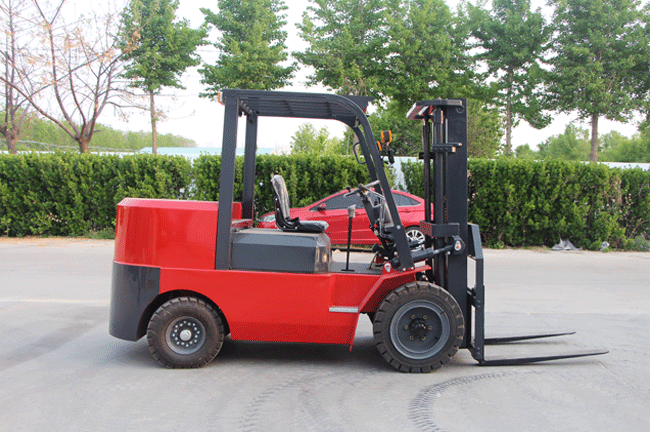

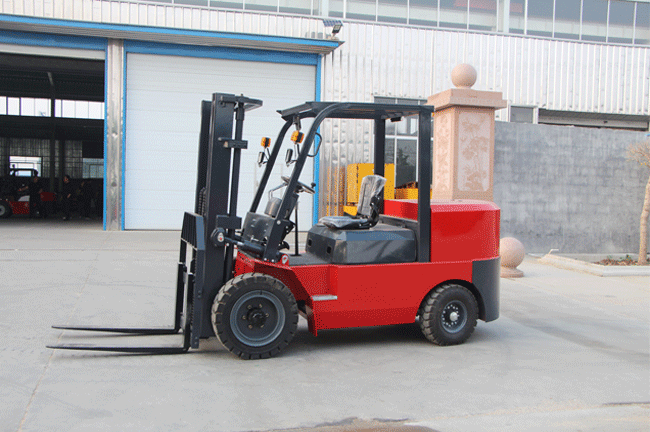

The JTC-35 is a 3.5-ton diesel forklift built for outdoor material handling where higher load capacity and straightforward diesel power still matter. With a rated load capacity of 3,500 kg, a 3,000 mm lifting height and a Weichai / Weifang 45 kW engine, this heavy duty diesel forklift suits yards, factories and construction supply work.
Its 2,950 x 1,300 x 2,200 mm overall size keeps the machine practical for loading areas and site circulation while maintaining the lift capacity needed for heavier pallets and bundled materials.
| Model | JTC35 |
| Rated Load Capacity | 3,500 kg |
| Lifting Height | 3,000 mm |
| Vehicle Size (L x W x H) | 2,950 x 1,300 x 2,200 mm |
| Fork Length | 1,070 mm |
| Front Tyres | 28*9-15 |
| Rear Tyres | 650-10 |
| Engine | Weichai / Weifang 45 kW |
With a rated load capacity of 3,500 kg, the JTC-35 gives buyers a step up from lighter diesel forklift classes for heavier pallets, bundled goods and daily yard handling.
The Weichai / Weifang 45 kW engine gives this forklift the output expected for loaded starts, repeated lifting cycles and outdoor diesel forklift work.
A 3,000 mm lifting height covers common loading, unloading and stacking tasks in factories, warehouses and building material yards.
The 1,070 mm fork length supports standard pallet and material handling tasks without overcomplicating the setup for day-to-day operation.
At 2,950 x 1,300 x 2,200 mm, the machine keeps a relatively manageable footprint for a 3.5-ton diesel forklift working around loading bays and site traffic lanes.
Contact us for pricing and export arrangements for the JTC-35 diesel forklift. Single and bulk orders welcome.
