Lift height:7000mm
Maximum lift capacity:5000kg
TEngine rate power:91kW
Back to List

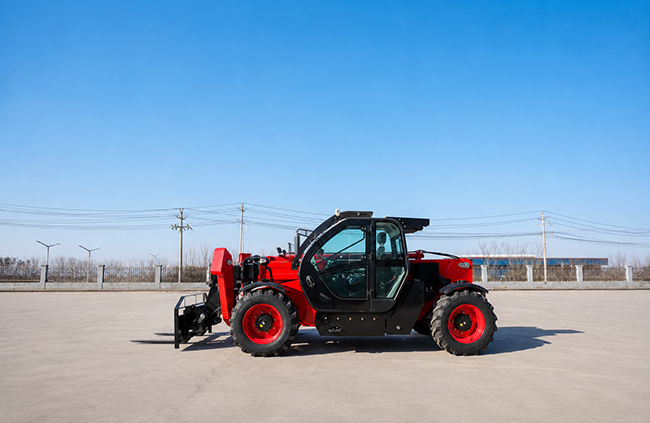

The JTTR-750 Telescopic Handler combines a 5,000 kg maximum lifting capacity, 7.0 m lifting height and 4.0 m forward reach for heavy-duty material handling in construction, agriculture and industrial yards. Powered by a 91 kW Yuchai YCD4J22T-125 turbocharged diesel engine, this rough-terrain telehandler is designed for lifting and positioning heavy palletized materials across demanding job sites.
| Model | JTTR-750 |
| Max. Lift Capacity | 5,000 kg |
| Max. Lift Height | 7,000 mm |
| Max. Forward Reach | 4,000 mm |
| Standard Engine | Yuchai YCD4J22T-125 · 91 kW |
| Operating Weight | Approx. 10,000 kg (Indicative) |
| Ground Clearance | 350 mm |
| Tire Specification | 400/80R24 Radial |
| Overall Height / Width | 2,400 / 2,200 mm (Indicative) |
| Reach at Max. Height | 450 mm |
| Wheelbase / Front Track | 2,850 / 1,750 mm |
| Outside Turning Radius | 4,250 mm (Over Tires) |
| Carriage Rollback Angle | 42.6° |
| Carriage Dump Angle | 37.5° |
| Length to Front Tires | 4,200 mm |
| Cab Internal Width | 800 mm |
| Pallet Fork Length | 1,220 mm |
| Optional Engines | FPT / Cummins / Yuchai (Subject to Availability) |

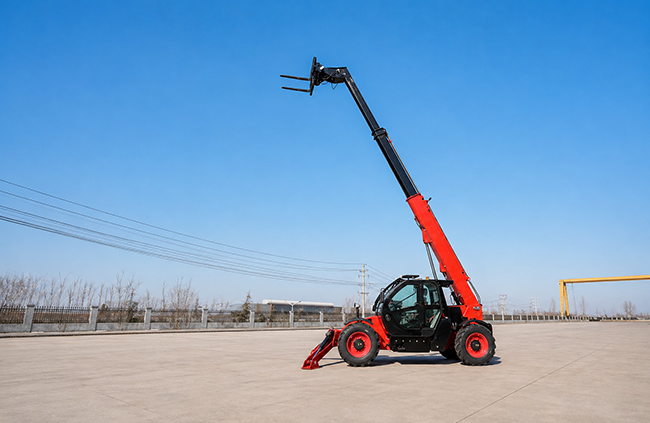

The JTTR-750 features a 91 kW Yuchai YCD4J22T-125 turbocharged diesel engine and a telescopic lifting boom with a 7.0 m maximum lifting height. Its 5,000 kg rated lifting capacity, 4.0 m forward reach and 350 mm ground clearance support material handling on suitable construction sites, industrial yards and agricultural facilities.

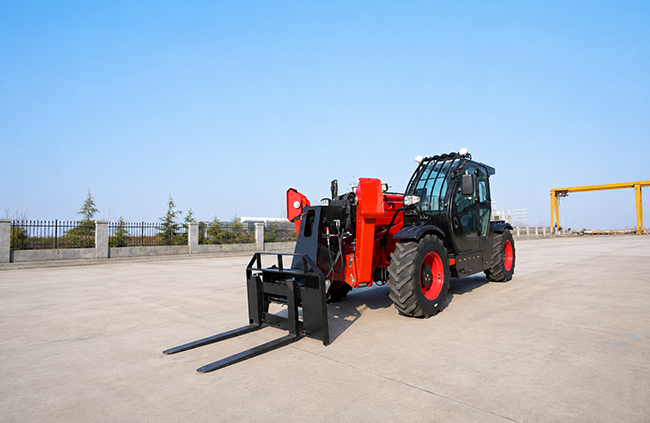

The machine is specified with 400/80R24 radial tires and standard pallet forks. Compatible buckets, pipe clamps, material grabs and alternative engine configurations can be discussed according to project requirements. EPA Tier 4 Final or Euro Stage V compliance must be verified for the selected certified engine and complete machine configuration before ordering.
Get factory-direct pricing, detailed specifications and FOB or CIF shipping options for your destination country.
Tell us your country, required lifting capacity, lift height, working conditions and preferred attachments. We can also discuss engine options, emissions requirements and shipping arrangements.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
5 Ton Lifting & 7.0 m Lift Height: Offers 1,000 kg more maximum rated lifting capacity than the JTTR-740, with a 7.0 m maximum lift height for heavier palletized construction and industrial materials.
91 kW Diesel Power & Radial Tires: Yuchai turbocharged engine and 400/80R24 radial tires support heavy material handling on suitable construction, agricultural and industrial working surfaces.

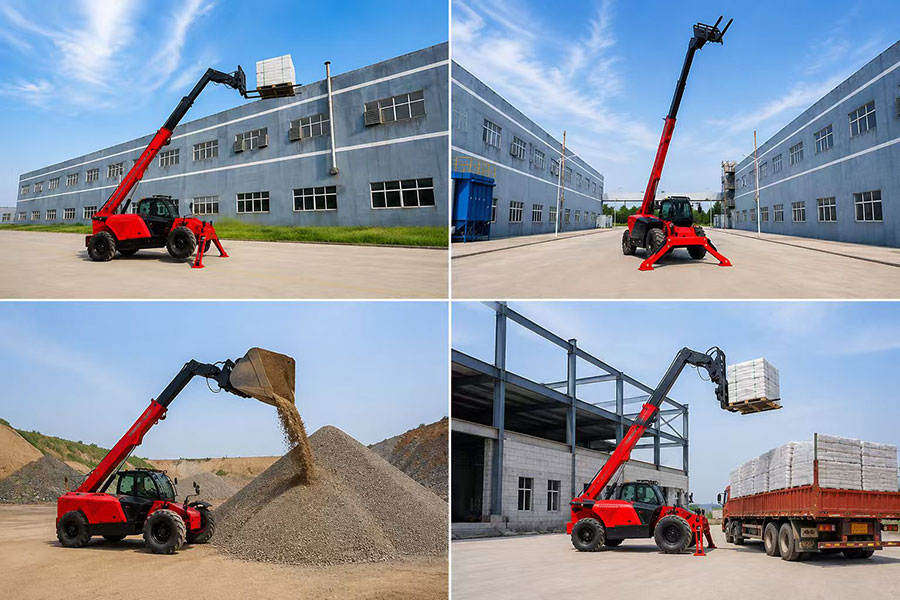

4.0 m Forward Reach & Versatile Attachments: Telescopic boom and compatible handling tools allow material positioning across truck beds, loading areas and other job-site obstacles within the approved load chart.
Maximum rated lifting capacity does not apply at every boom position. Actual load limits depend on lifting height, forward reach, attachment, ground conditions and the approved manufacturer load chart. Machine dimensions, operating weight, tire configuration, engine emissions compliance and optional equipment must be confirmed before ordering.
