Lift height:7000mm
Maximum lift capacity: 3000kg
TEngine rate power:76kW
Back to List
7.0m Working Reach | 76kW Turbocharged Diesel | 3,000kg Heavy Lift | EPA & Euro 5 Compliant
| Model | JTTR-730 |
| Max Lift Capacity | 3,000 kg (2,400 kg at full height) |
| Max Lift Height | 7,000 mm |
| Max Forward Reach | 3,600 mm (1,200 kg capacity) |
| Standard Engine | Yunnei YN38GBZ (76 kW) |
| Operating Weight | 7,000 kg |
| Reach at Max Lift Height | 450 mm |
| Carriage Tilt Angles | Rollback: 42.6° | Dump: 37.5° |
| Optional Engines | FPT F36 (75kW), Kohler KDI2504TCR, Cummins (4BT / QSB / QSF), Changchai |
| Overall Dimensions (L×W×H) | 4,650 × 2,150 × 2,300 mm (to carriage) |
| Length to Front Tires | 4,200 mm |
| Wheelbase / Front Track | 2,850 mm / 1,750 mm |
| Ground Clearance | 350 mm |
| Outside Turning Radius | 4,250 mm (over tires) |
| Tire Size | 16/70-20 |
| Pallet Fork Length | 1,220 mm |
| Cab Internal Width | 800 mm |
| Container Loading | 1 Unit / 20GP Container |
| Warranty | 1 Year or 1,200 Working Hours |

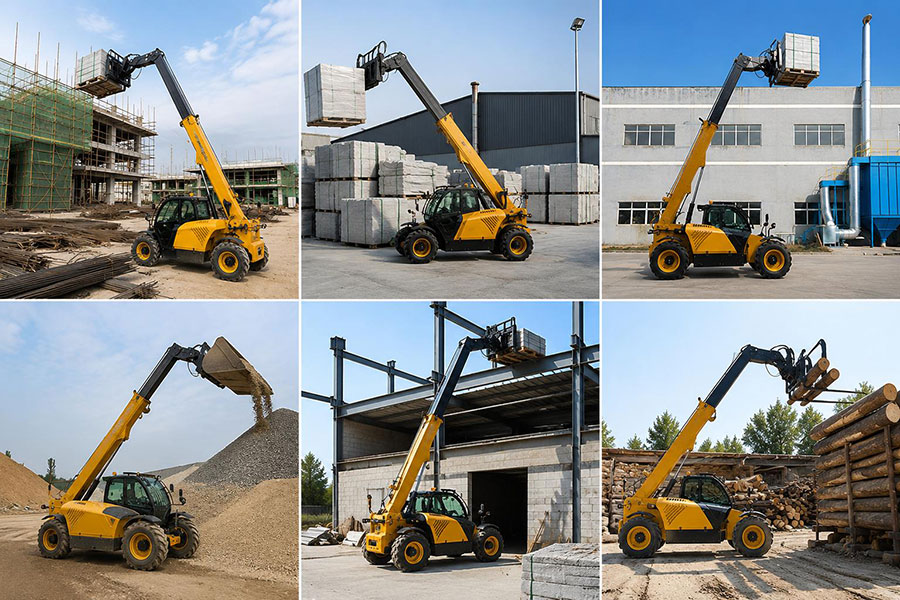

✔ Two-Story Stacking Reach: 7.0m telescopic boom unloads high-sided trailers and lifts pallets onto second-floor building decks.
✔ Rough-Terrain Footing: 350mm ground clearance and large 16/70-20 lug tires maintain traction on muddy and unpaved yards.
✔ Standard 20GP Container Fit: Optimized machine width allows 1 unit to pack into a 20ft container to save ocean shipping cost.
✔ Customs Ready Powerplants: Engine certification packages available to ensure smooth import clearance in European and North American ports.
✅ Global Quality: Certified equipment (CE, ISO) designed for extreme conditions.
✅ Constant Innovation: Over 200 patents focused on efficiency and durability.
✅ Your Trusted Partner: Direct factory supply with technical support and global logistics.
