Drilling depth: 180m
Drilling diameter: 130-254mm
Main motor power: 42KW

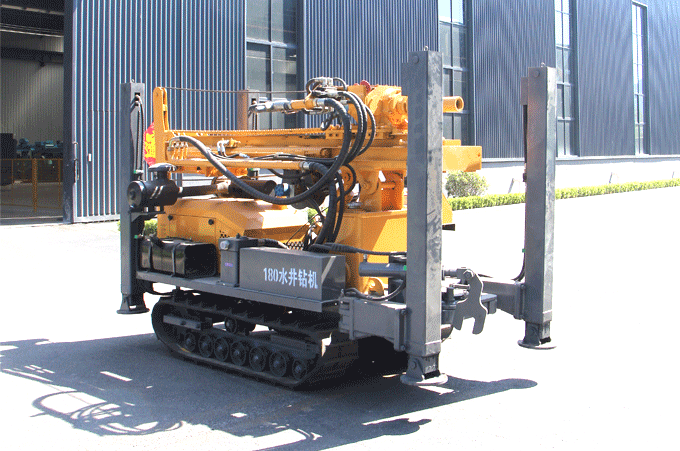

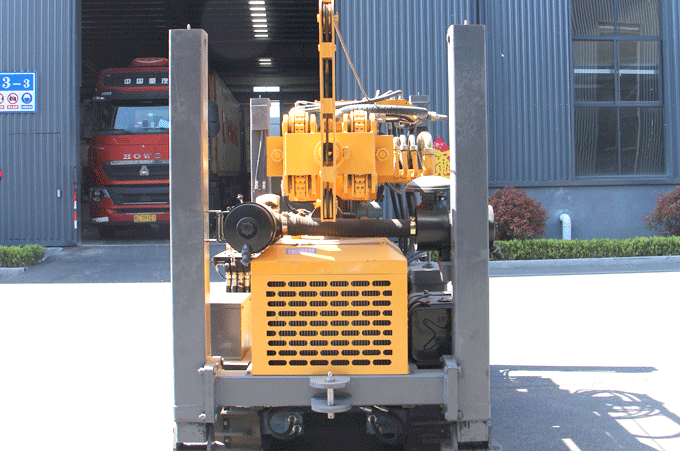

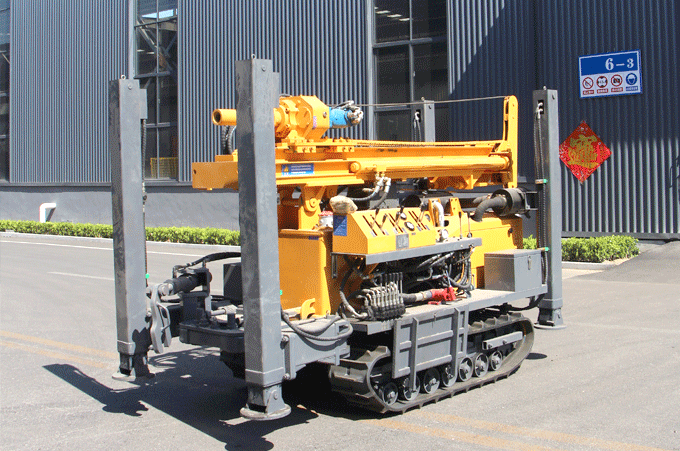

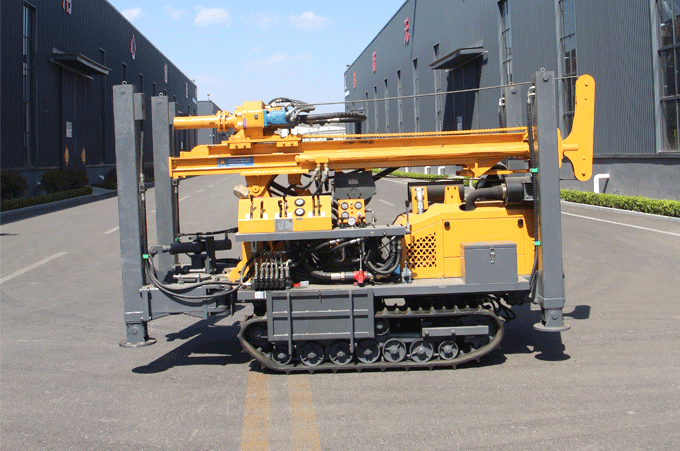

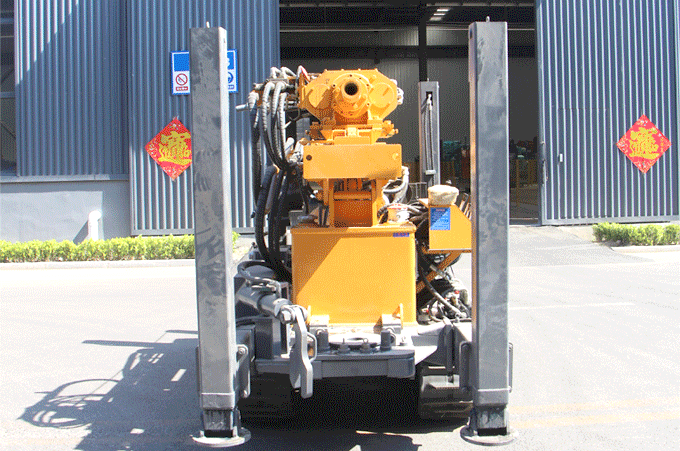

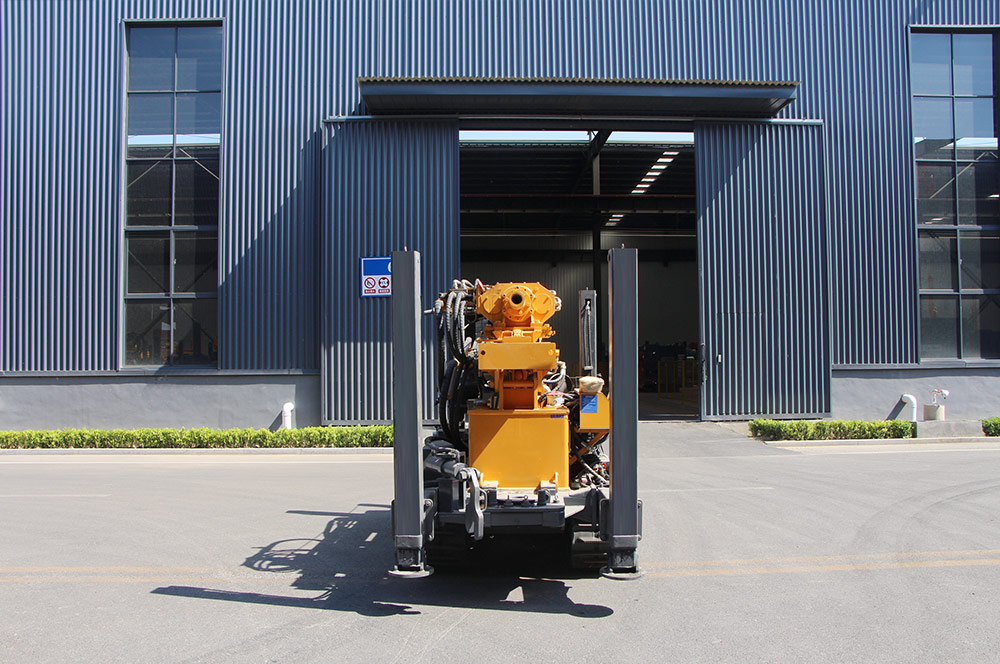

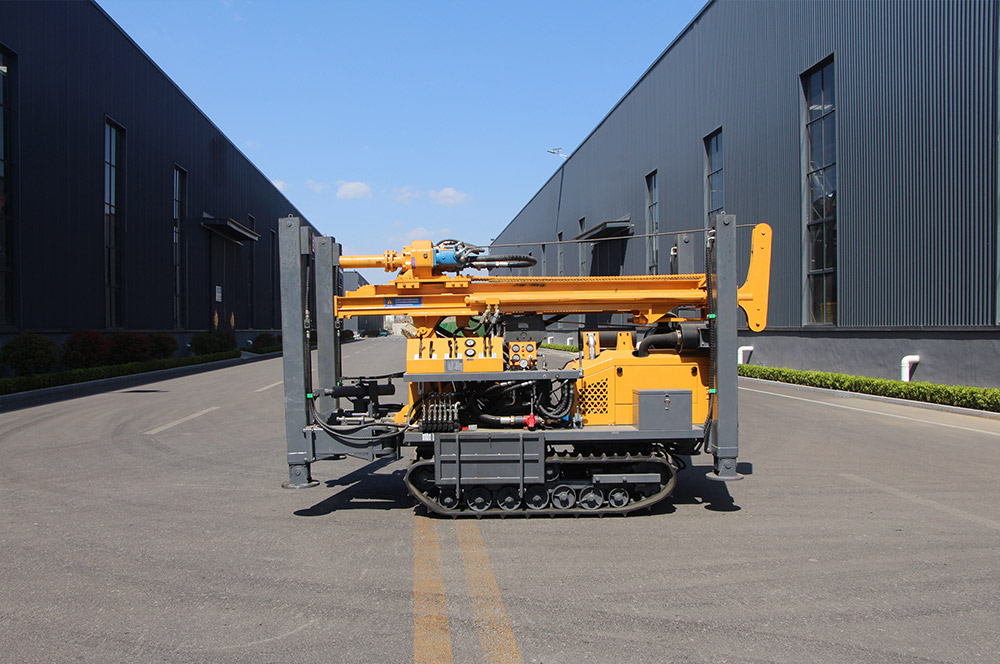

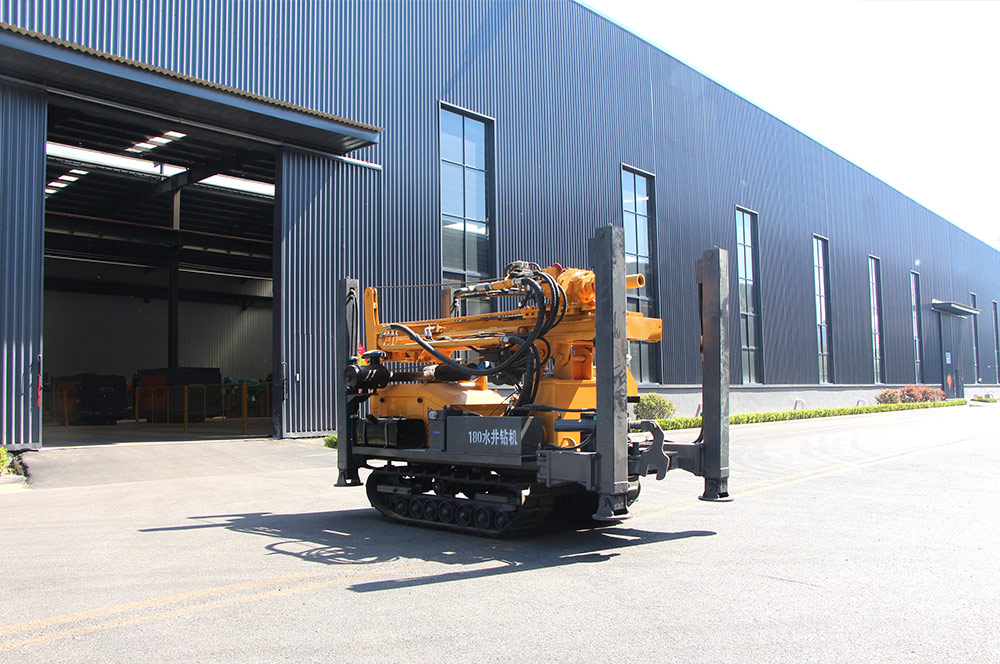

180m Crawler Pneumatic Water Well Drilling Rig | Save Cost & Fast Drilling | One Machine for Multiple Projects
JTQZ-180 is built for reliable, cost-effective well drilling. It easily reaches 180m depth, handles multiple bore sizes, and travels freely on rough terrain. Ideal for farm irrigation, rural water supply, industrial wells and monitoring holes, it helps you take more jobs, reduce downtime and lower operating costs.
| Model | JTQZ-180 |
| Weight | 4.5 t |
| Drill Hole Diameter | 140-254 mm |
| Drill Hole Depth | 180 m |
| Single Push Length | 3.3 m |
| Travel Speed | 2.5 km/h |
| Climbing Ability | 30° |
| Engine Power | 55 kW |
| Working Air Pressure | 1.7-2.5 MPa |
| Air Consumption | 17-31 m³/min |
| Rotation Speed | 45-70 rpm |
| High Leg Stroke | 1.4 m |
| Drill Pipe Diameter | 76/89 mm |
| Drill Pipe Length | 1.5 m / 2.0 m / 3.0 m |
| Rig Lifting Force | 12 t |
| Rapid Rise Speed | 20 m/min |
Perfectly meets daily demands of farm, rural and construction water wells. Stable drilling in sand, gravel and soft rock allows you to accept more projects without extra equipment investment.
Supports 140–254mm bore sizes for household, irrigation, industrial and monitoring wells. One machine replaces multiple units, improving utilization and speeding up return on investment.
Powerful hoisting and fast lifting efficiently handle deep drill pipes. It greatly lowers the risk of stuck or buried pipes, reducing breakdown loss and ensuring stable on-site performance.
Rubber track design supports 30° climbing and self-propelled walking. It freely enters farms, hills and muddy sites without extra trailers, saving transportation cost and time.
4.5t compact body and 55kW power system deliver low fuel consumption and high reliability. Ideal for long-term drilling projects with low maintenance and operating cost.
Factory direct supply with stable quality and competitive price. Contact us for customized solution, project matching and official quotation.
