Drilling depth: 260m
Drilling diameter: 140-305mm
Main motor power: 76kw
260m Super Deep Water Well Drill Rig | Large Bore Design | High Profit Commercial Drilling

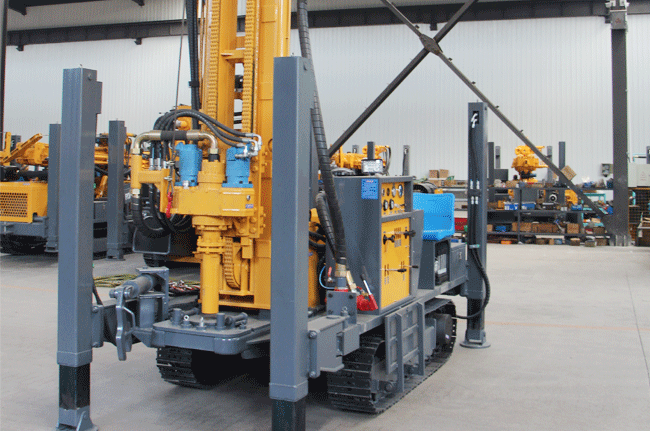

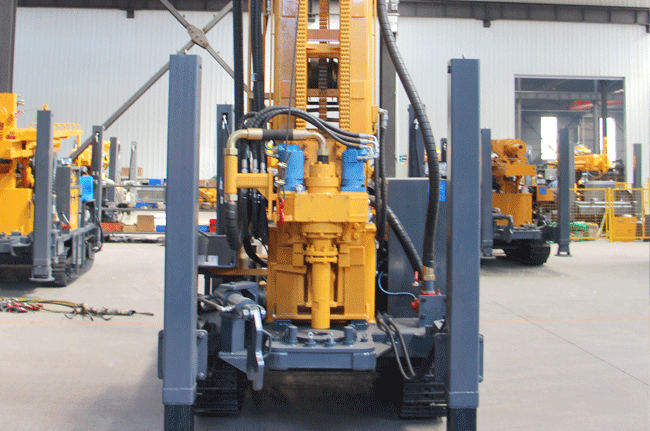

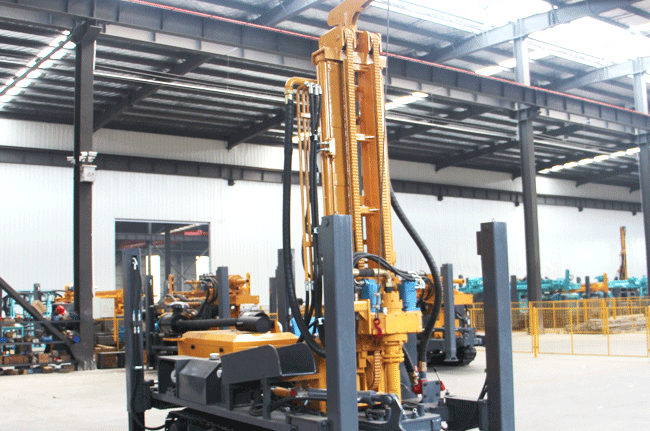

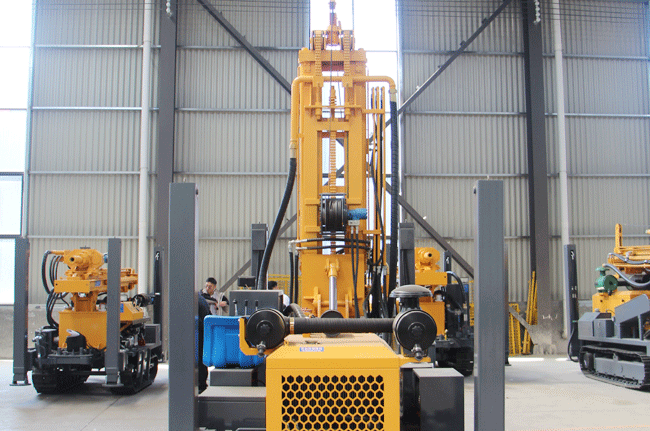

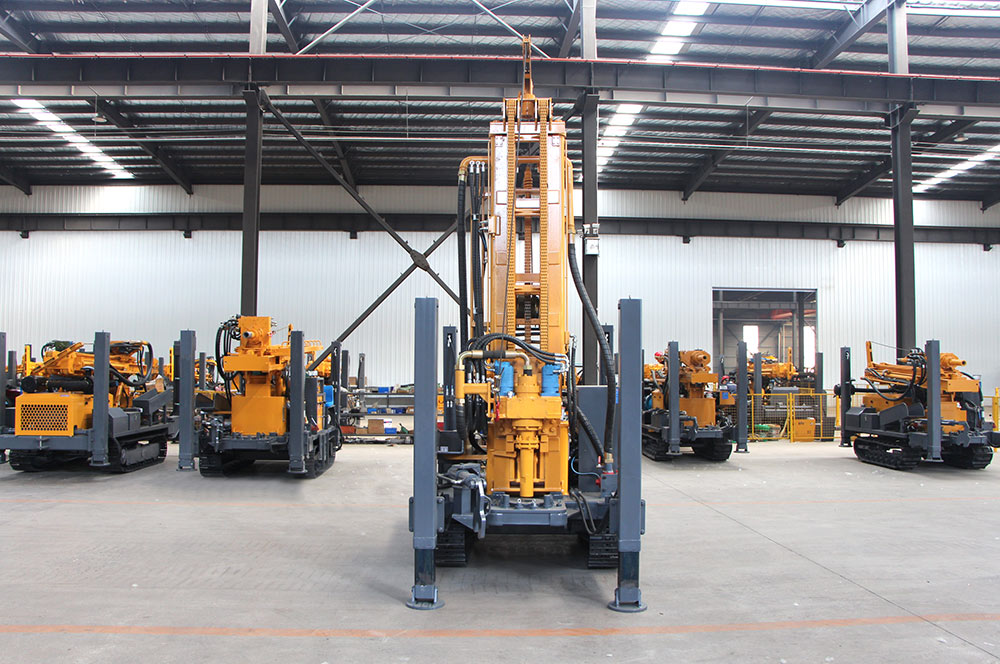

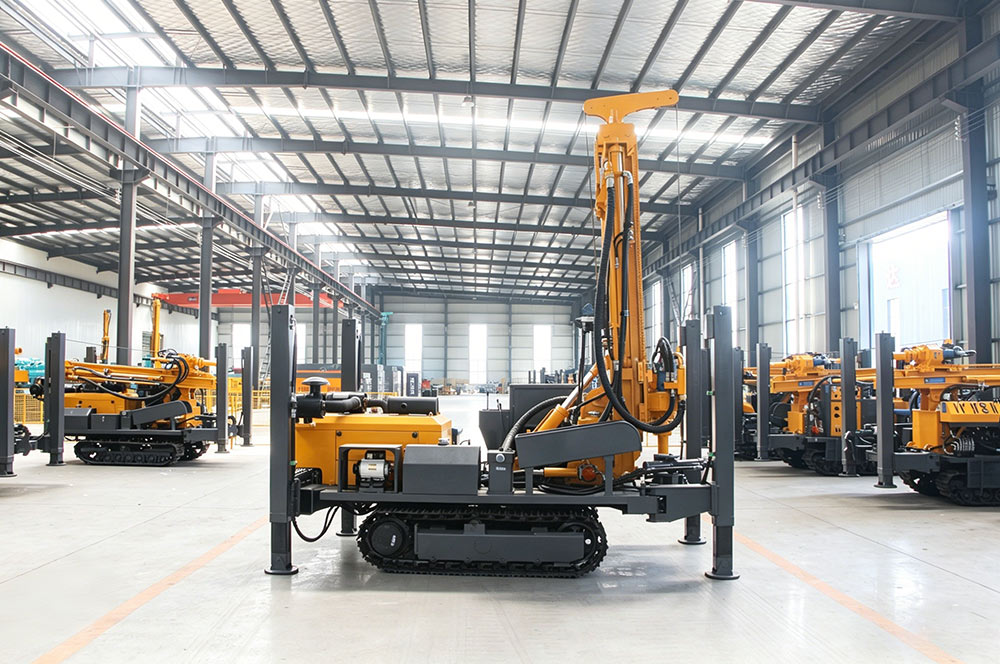

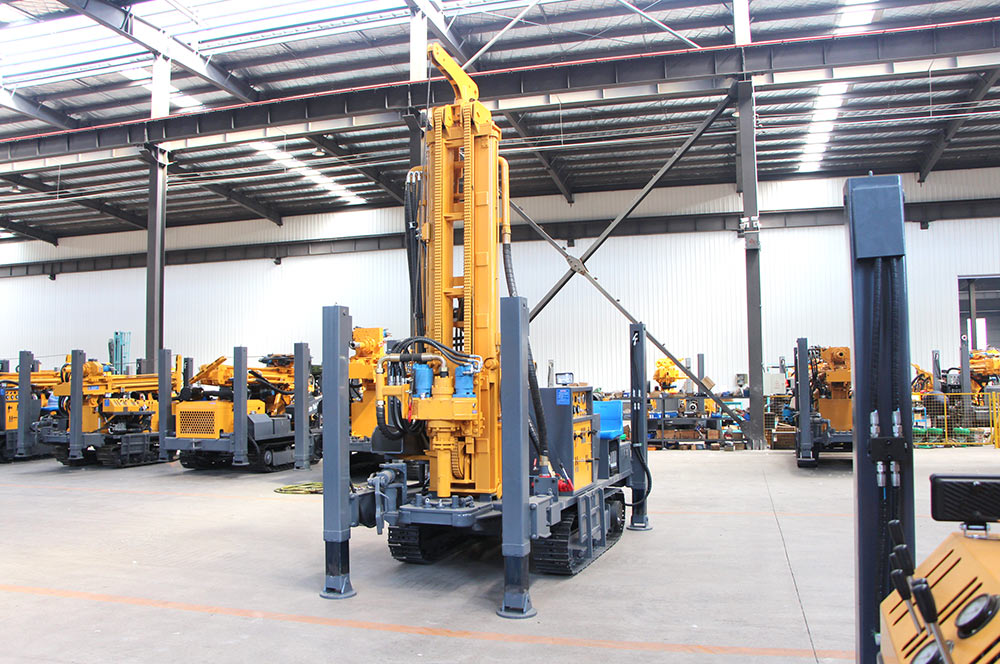

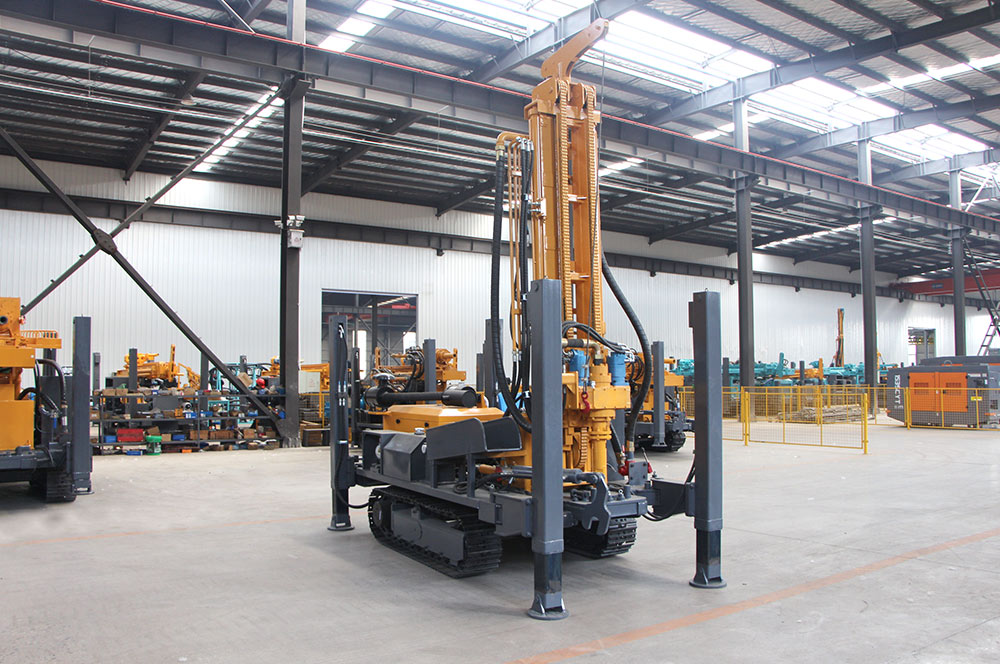

JTQZ-260 professional deep water well drilling rig is tailored for commercial high-value deep well projects. It supports 260m ultra-deep drilling and extra-wide bore diameter, perfectly for large farm irrigation, municipal water supply, industrial deep wells and hydrological monitoring projects. Strong power, huge lifting capacity and all-terrain crawler design help you take more high-paid deep well jobs with low failure rate and fast return.
| Model | JTQZ-260 |
| Weight | 5.7 t |
| Drill Hole Diameter | 140-305 mm |
| Drill Hole Depth | 260 m |
| Single Push Length | 3.3 m |
| Travel Speed | 2.5 km/h |
| Climbing Ability | 30° |
| Engine Power | 76 kW |
| Working Air Pressure | 1.7-2.8 MPa |
| Air Consumption | 17-31 m³/min |
| Rotation Speed | 45-70 rpm |
| High Leg Stroke | 1.4 m |
| Drill Pipe Diameter | 76/89 mm |
| Drill Pipe Length | 1.5 m / 2.0 m / 3.0 m |
| Rig Lifting Force | 15 t |
| Rapid Rise Speed | 40 m/min |
Easily reach 260m stable drilling depth, smoothly passing sand, gravel and soft rock. Perfect for undertaking high-priced commercial deep well projects, expanding your business scope and making more profits.
The widest diameter range in the series, meets large irrigation wells, industrial water wells and monitoring well demands. One rig handles all bore sizes, no need for repeated equipment investment, save cost and improve utilization.
15t heavy lifting capacity matched with 40m/min rapid lifting, easily pull out deep drill pipes. Effectively avoid pipe sticking and buried pipe failures, reduce downtime maintenance and construction loss.
Reinforced tracked body with 30° climbing ability, adaptable to farmland, mountain slopes and muddy complex roads. Self-walking transfer saves trailer fees, directly arriving at remote construction sites.
3.3m one-time feed stroke and compatible multi-spec drill pipes reduce frequent rod replacement. Fast leveling on uneven ground shortens setup time, greatly improving daily drilling efficiency.
Factory direct sales for commercial deep well drilling rigs. Contact us for favorable factory price, full configuration options and professional project drilling solutions.
