Lifting height: 3–6 m
Maximum lifting capacity: 3500 kg
Minimum ground clearance: 250 mm
Back to List
Lifting height: 3–6 m
Maximum lifting capacity: 3500 kg
Minimum ground clearance: 250 mm

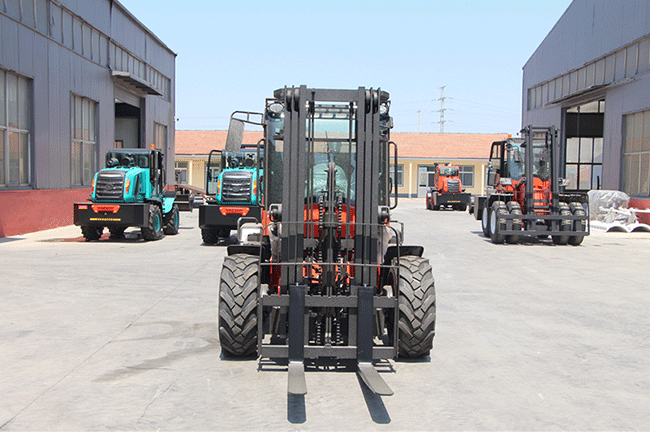

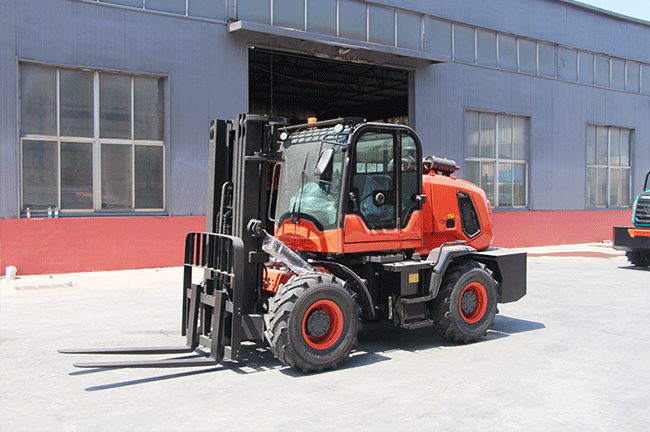

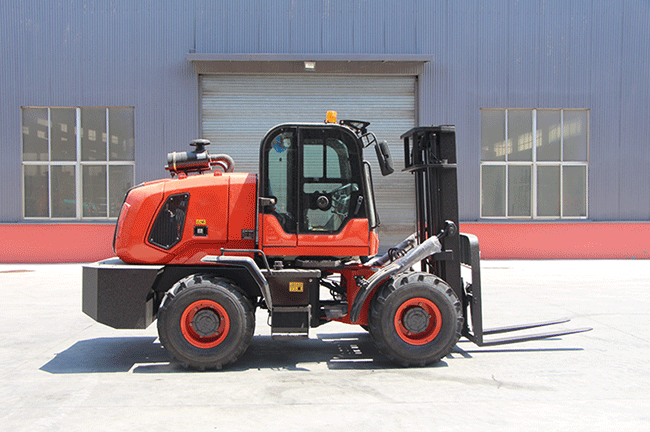

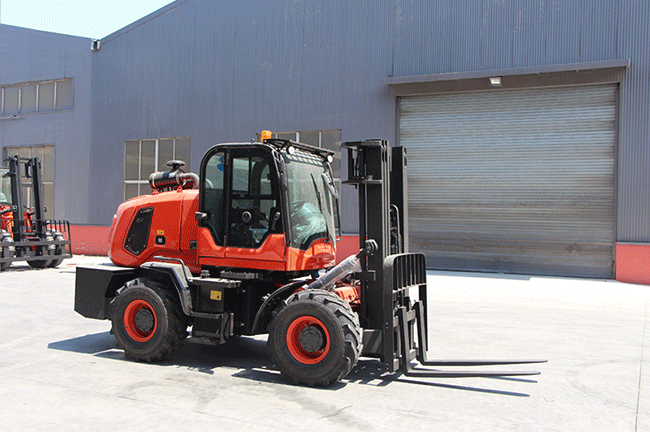

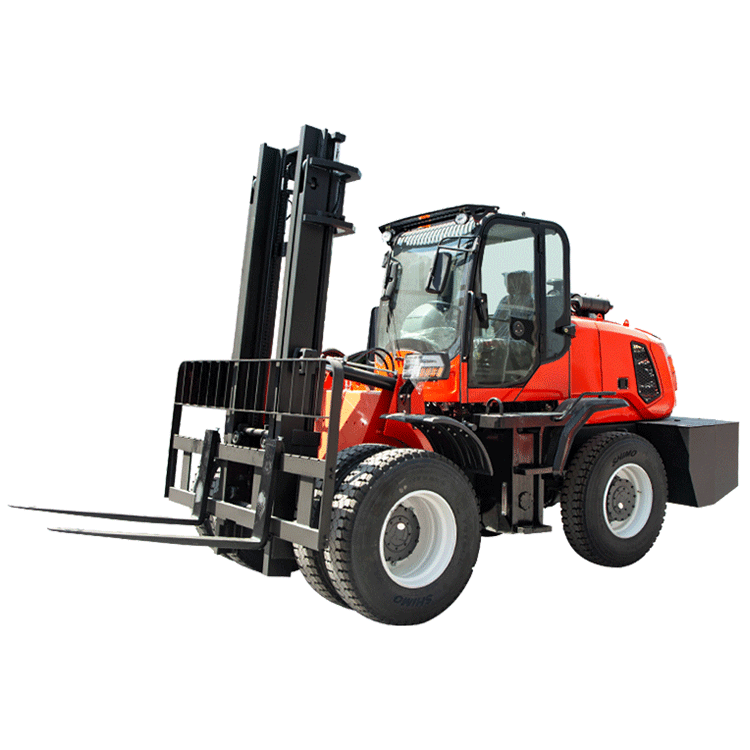

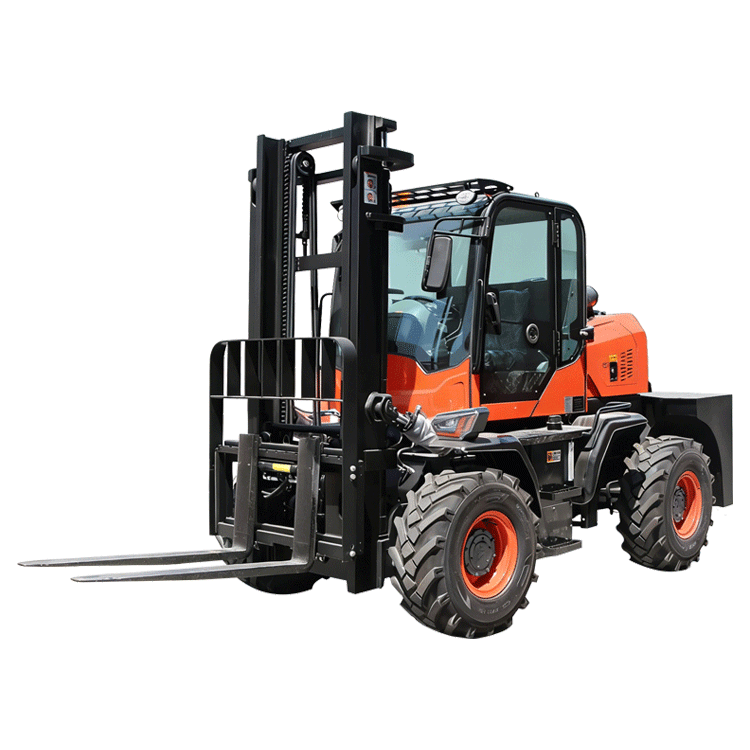

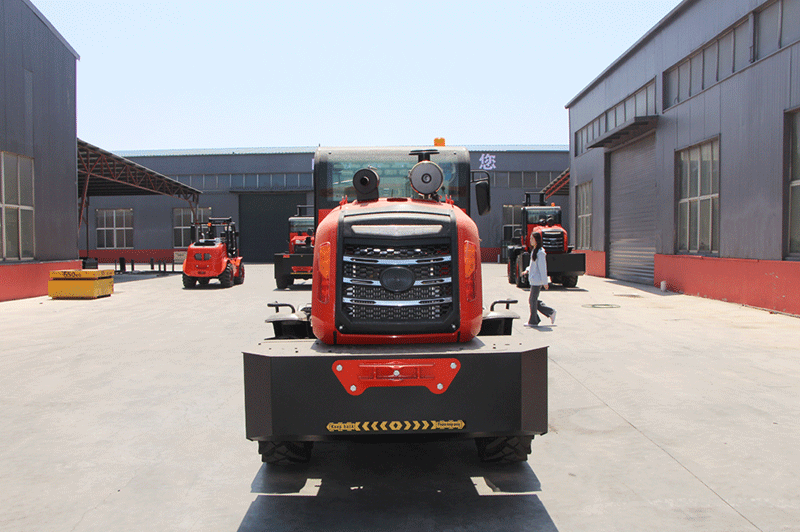

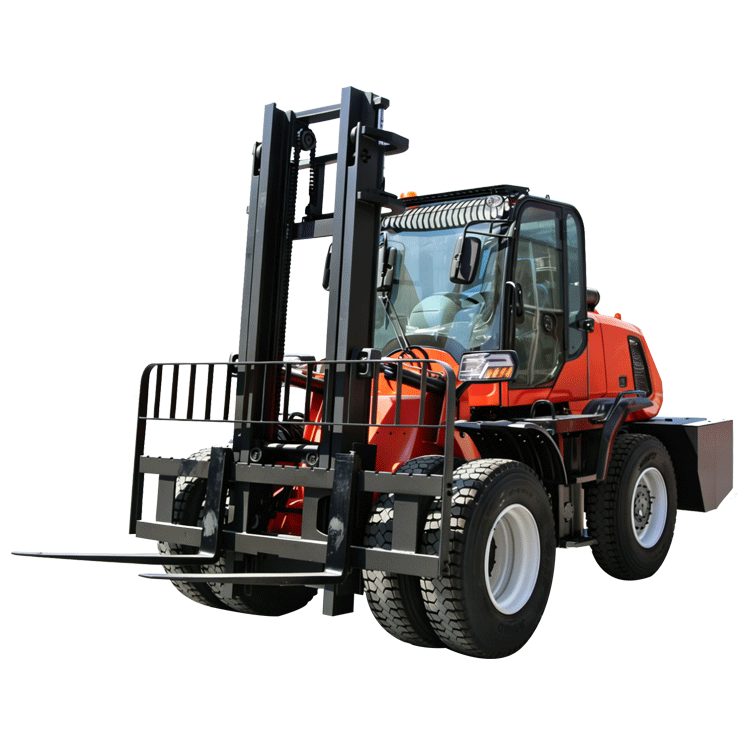

The JTYC35-1 Rough Terrain Forklift combines a 3,500 kg rated lifting capacity, 1,875 mm wheelbase and four-wheel drive for outdoor material handling. Powered by a 490-series diesel engine, this short-wheelbase model features heavy cast steel wheel reduction axles for construction sites, agricultural yards and industrial loading operations.
| Model | JTYC35-1 |
| Rated Load | 3,500 kg |
| Lift Height | 3,000–6,000 mm |
| Engine | 490 Series Diesel |
| Drive Mode | Four-Wheel Drive (4WD) |
| Wheelbase | 1,875 mm |
| Vehicle Weight | ≥4,100 kg |
| Overall Dimensions | 3,750 × 1,850 × 2,380 mm |
| Maximum Climbing Angle | ≤45° |
| Maximum Travel Speed | 30 km/h |
| Minimum Ground Clearance | 250 mm |
| Axles | Heavy Cast Steel Wheel Reduction Axles |
| Tire Specification | 23.5/70-16 High-Pressure Off-Road Tires |
| Transmission Gears | 4 Forward / 4 Reverse |
| Gearbox | Dual High/Low-Speed Torque Converter |
| Cab | New Electrophoresis-Coated Luxury Rounded Cab |
The 490-series diesel engine works with heavy cast steel wheel reduction axles and a dual high/low-speed torque converter. Its 4-forward/4-reverse gearbox, 4WD drivetrain and configurable 3–6 m lifting mast support outdoor loading and material transport.
Get factory-direct pricing, 3.5-ton forklift configurations and FOB/CIF shipping quotations.
Share your load dimensions, required lifting height and destination country through the inquiry form or WhatsApp.
3.5 Ton Short-Wheelbase Design: A 1,875 mm wheelbase for outdoor pallet handling and material movement.
Cast Steel Axles & 4WD: Heavy wheel reduction axles and off-road tires for suitable uneven working surfaces.
Dual-Speed Torque Converter: High/low-speed transmission and 4F/4R gears for varied outdoor operating requirements.
Specifications follow the manufacturer-supplied YGCY-35 Short Axis Version, marketed as JTYC35-1. Rated lifting capacity depends on mast height, load center and the approved capacity plate. Maximum climbing angle does not represent a safe full-load operating limit.
