Lifting height: 3-6 m
Max lifting capacity: 8000 kg
Min ground clearance: 280 mm
Back to List

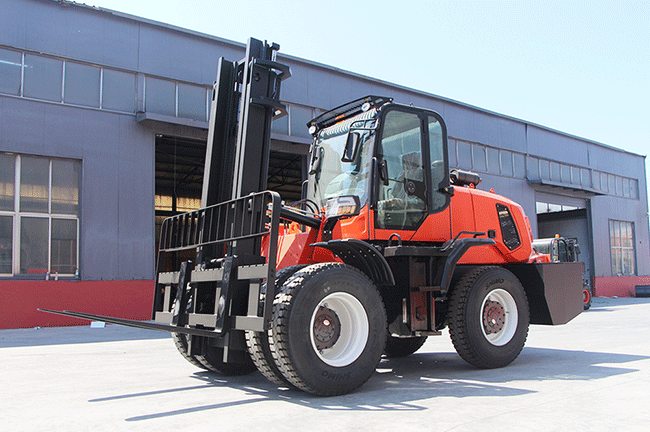

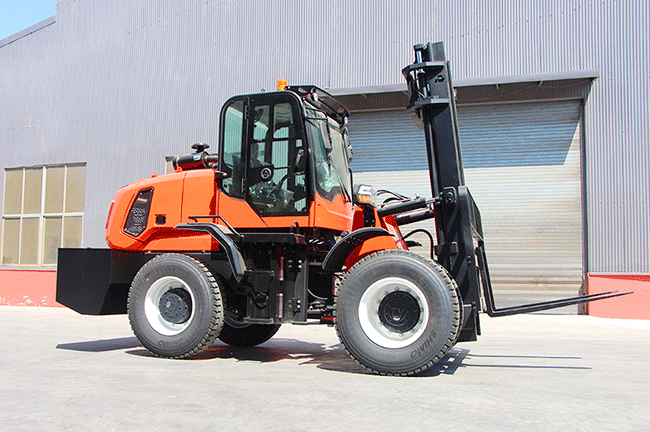

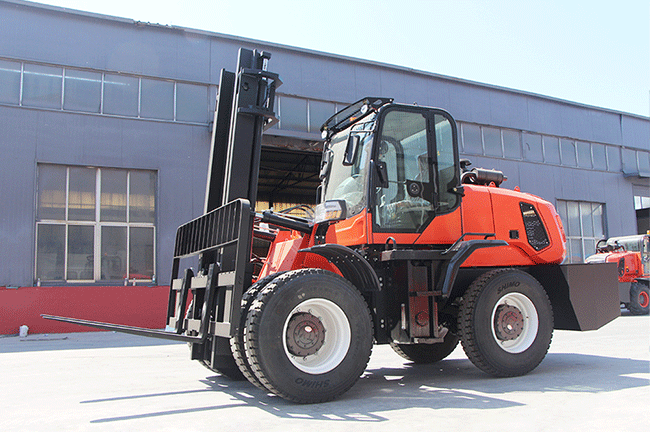

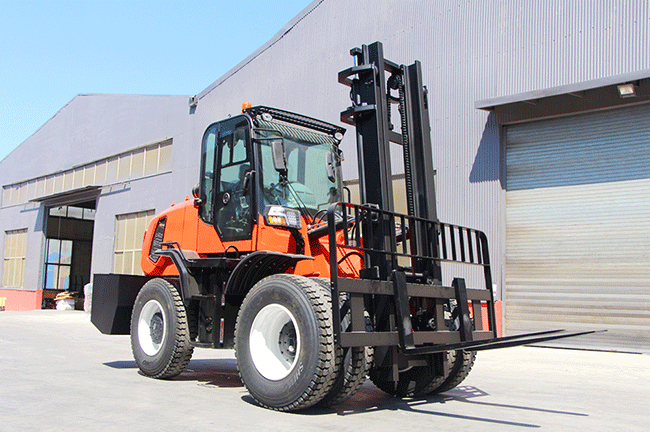

The JTYC80 Rough Terrain Forklift delivers 8,000 kg rated lifting capacity with a 2,400 mm wheelbase, four-wheel drive and heavy-duty wheel reduction axles. Available with 4108 or 6105 supercharged diesel engines, it is designed for mining support, infrastructure construction and industrial material handling.
| Model | JTYC80 |
| Rated Load | 8,000 kg |
| Lift Height | 3,000–6,000 mm |
| Engine Options | 4108 / 6105 Supercharged Diesel |
| Drive Mode | Four-Wheel Drive (4WD) |
| Wheelbase | 2,400 mm |
| Vehicle Weight | ≥8,800 kg |
| Overall Dimensions | 4,850 × 2,100 × 2,600 mm |
| Maximum Climbing Angle | ≤45° |
| Maximum Travel Speed | 30 km/h |
| Minimum Ground Clearance | 300 mm |
| Axle | SG30 Wheel Reduction Axle |
| Front / Rear Tires | Front: Dual 12R22.5 Steel-Wire Tires; Rear: Single 16/70-20 Engineering Tires |
| Transmission Gears | 4 Forward / 4 Reverse |
| Gearbox | Dual High/Low-Speed Hydraulic Torque Converter |
| Cab | Luxury Electrophoresis Stamped Cab |
Choose between 4108 and 6105 supercharged diesel engines. The SG30 wheel reduction axles, dual-speed hydraulic torque converter and four-forward/four-reverse gearbox support heavy outdoor material handling. A customizable 3–6 m mast meets different lifting requirements.
Get factory-direct pricing, engine and mast configurations, plus FOB/CIF shipping quotations.
Share your load dimensions, required lifting height and preferred engine through the inquiry form or WhatsApp.
8 Ton Heavy-Load Handling: 8,000 kg rated capacity for large industrial components and heavy palletized materials.
SG30 Axles & 4WD: Wheel reduction axles and four-wheel drive for demanding outdoor logistics.
Dual Engine & Transmission Options: 4108/6105 diesel choices with high/low-speed hydraulic torque converter transmission.
Technical specifications follow the manufacturer-supplied YGCY-80 configuration, marketed as JTYC80. Rated lifting capacity depends on mast height, load center and the approved capacity plate. The stated climbing angle is not a full-load operating guarantee.
