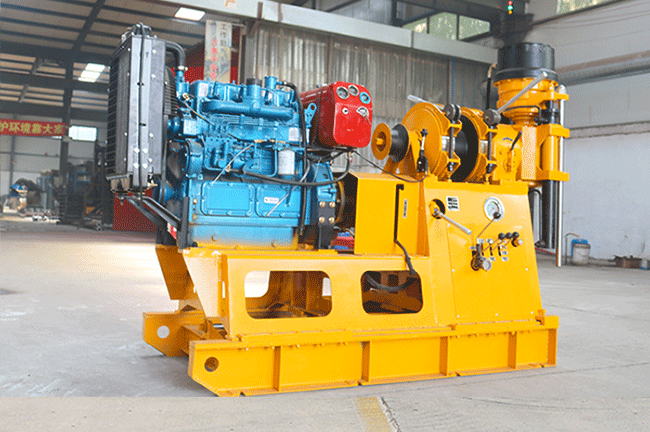

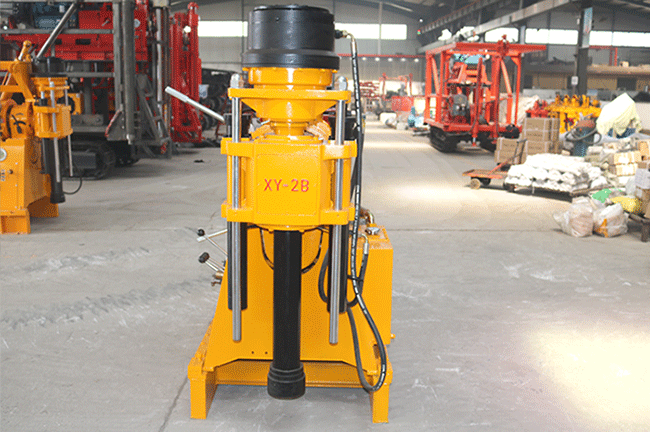

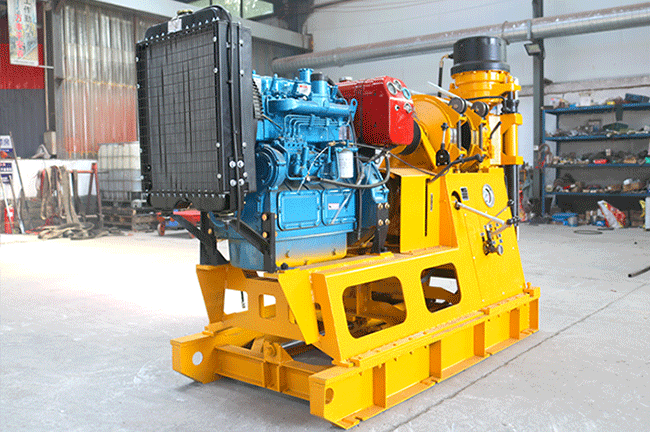

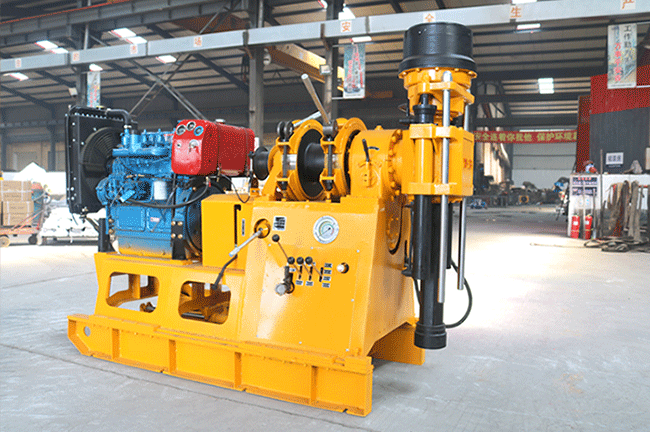

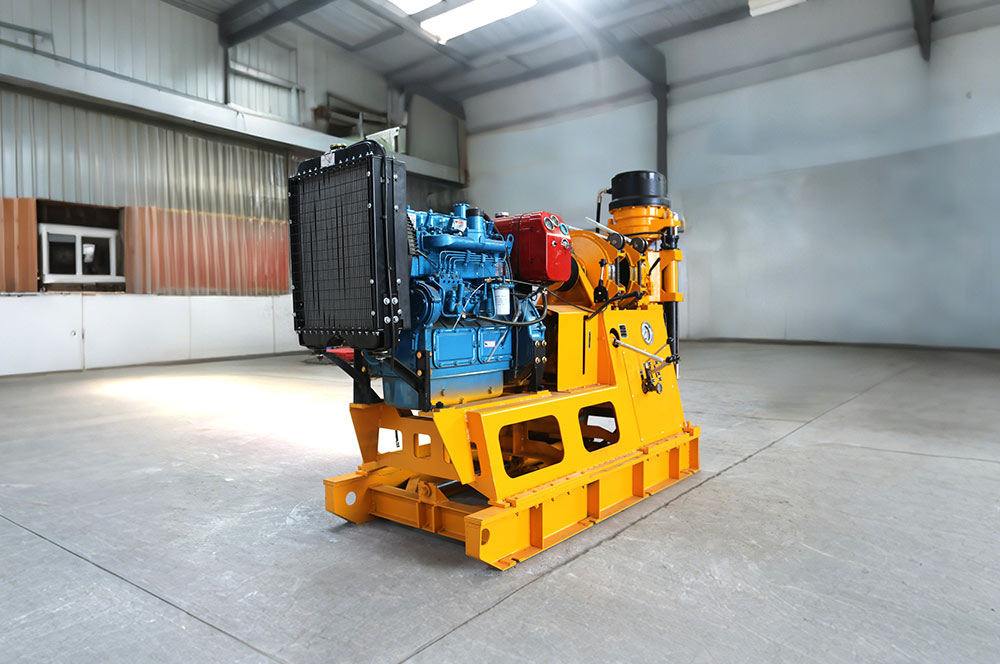

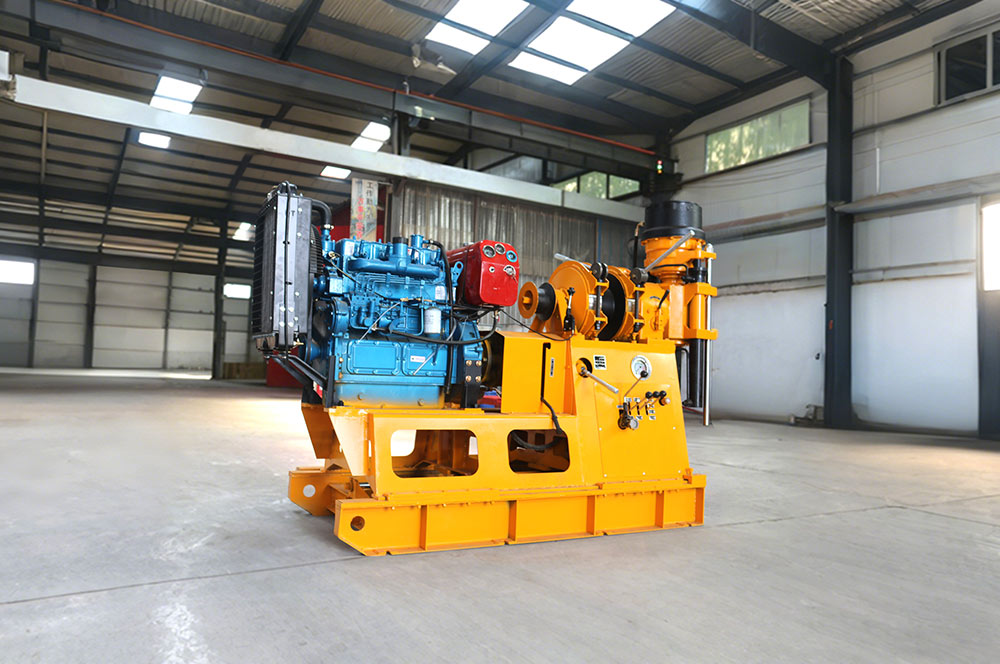

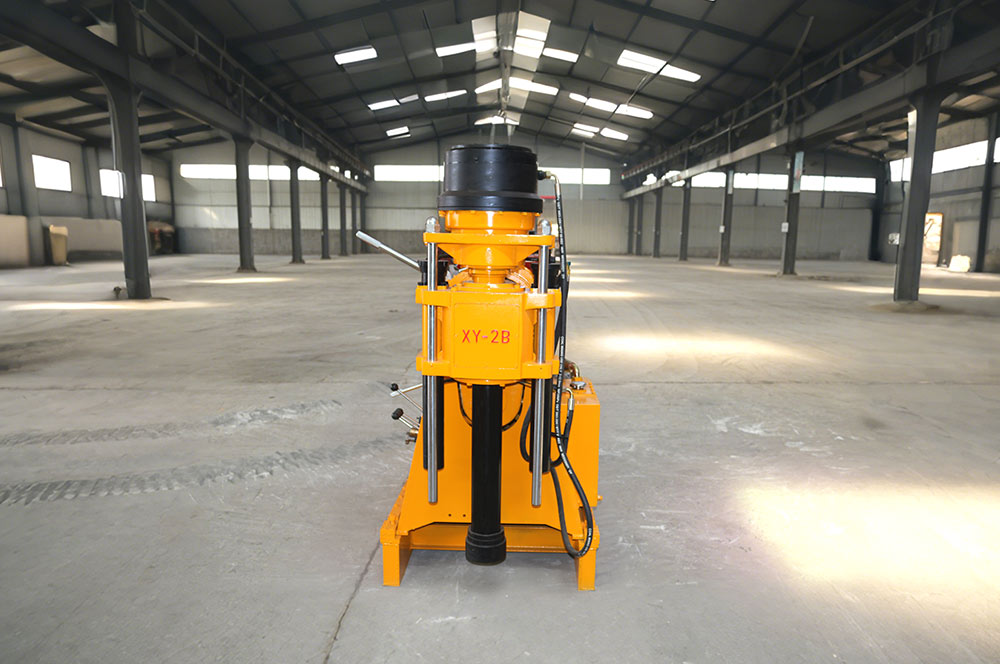

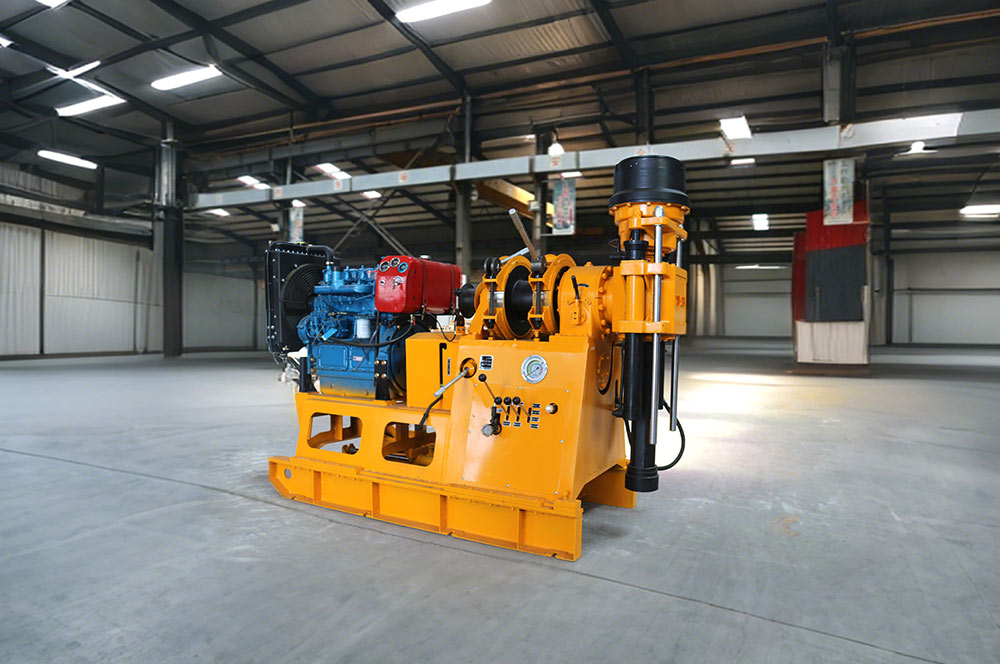

JTXY-2 Hydraulic Drill Rig

300m Drilling Depth | 75-300mm Diameter | 65°-90° Angle Flexibility | 6t Vertical Lift

Product Overview

The JTXY-2 hydraulic drill rig is built for versatile mid-depth drilling, supporting depths up to 300 meters. Optimized for geological exploration, foundation testing, grouting, and civil water well projects, this rig offers small-to-medium teams the perfect combination of site flexibility and reliable deep-hole performance.

Technical Specifications

Parameter	Specification
Model	JTXY-2
Max Drilling Depth	300 m
Drilling Diameter	75 - 300 mm
Drilling Angle	65° - 90°
Vertical Shaft Lifting Capacity	6 t
Single Rope Lifting Capacity	3 t
Single Rope Lifting Speed	0.5 - 1.9 m/s
Drill Rod Diameter	60 mm
Drum Capacity	50 m
Wire Rope Diameter	12.5 mm

Key Features

300m Deep-Hole Capacity: Provides professional-grade depth coverage for exploration and civil testing, eliminating the need for oversized platforms.
Multi-Angle Versatility: The 65°-90° adjustable angle range allows for both vertical and inclined drilling, ideal for complex foundation testing and grouting holes.
Adaptive Bore Range: 75-300mm diameter range covers diverse project requirements, from final hole drilling to larger opening diameter needs.
Robust Lifting Power: Features a 6-ton vertical shaft lift and 3-ton rope hoist, ensuring stable tool and rod handling on 300m-class projects.
Optimized Hoisting Speed: Variable lifting speeds (0.5-1.9 m/s) provide flexibility for efficient daily site operations.
