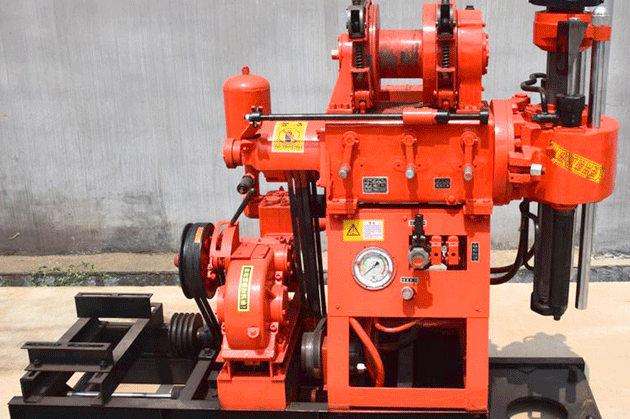

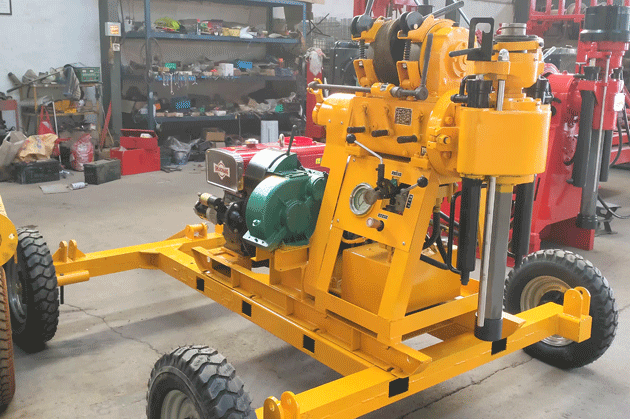

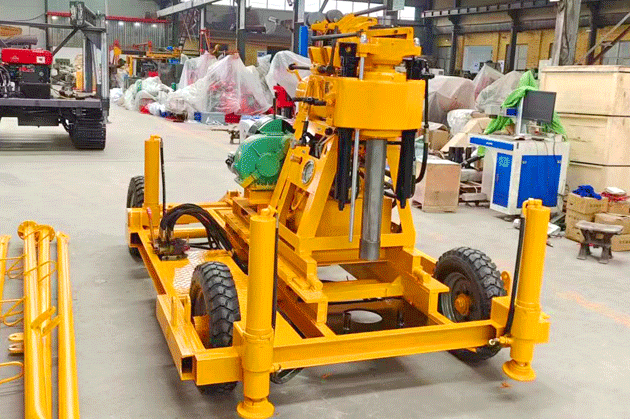

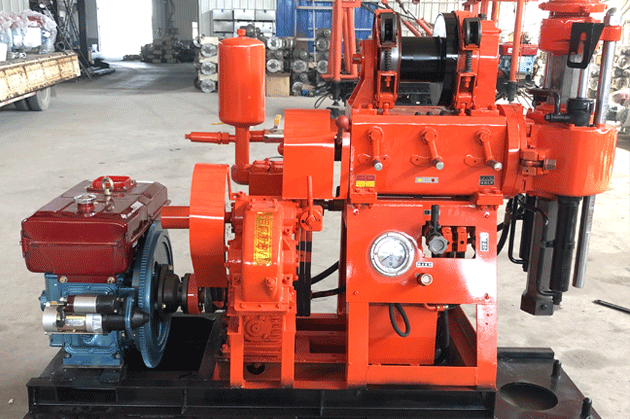

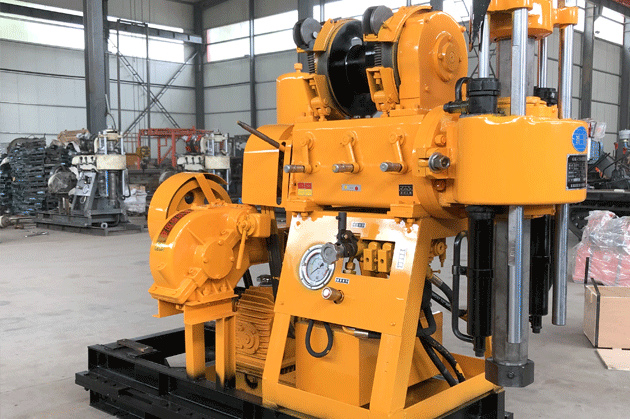

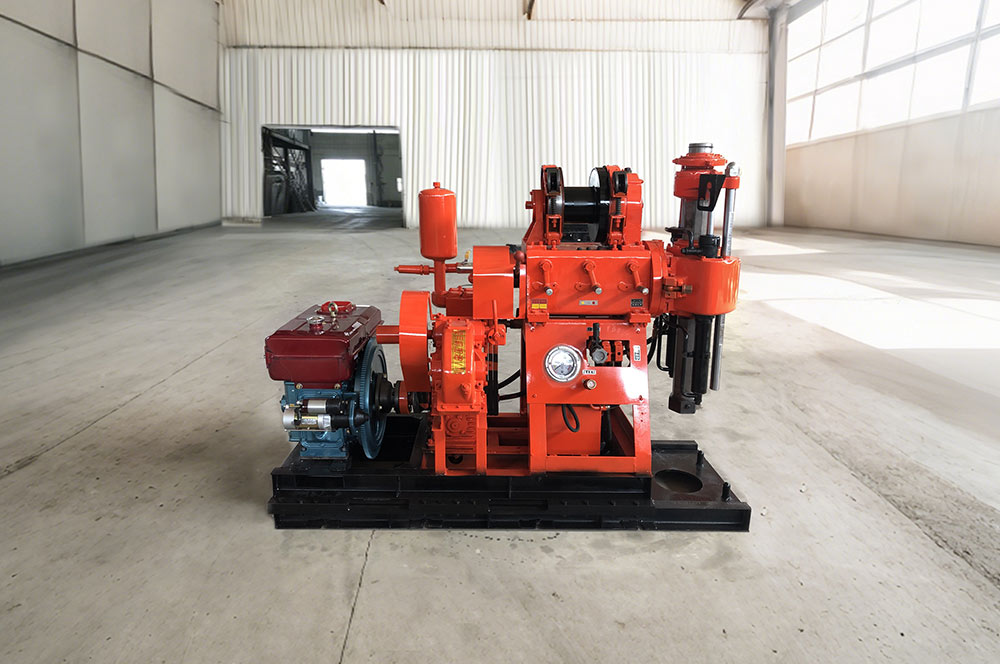

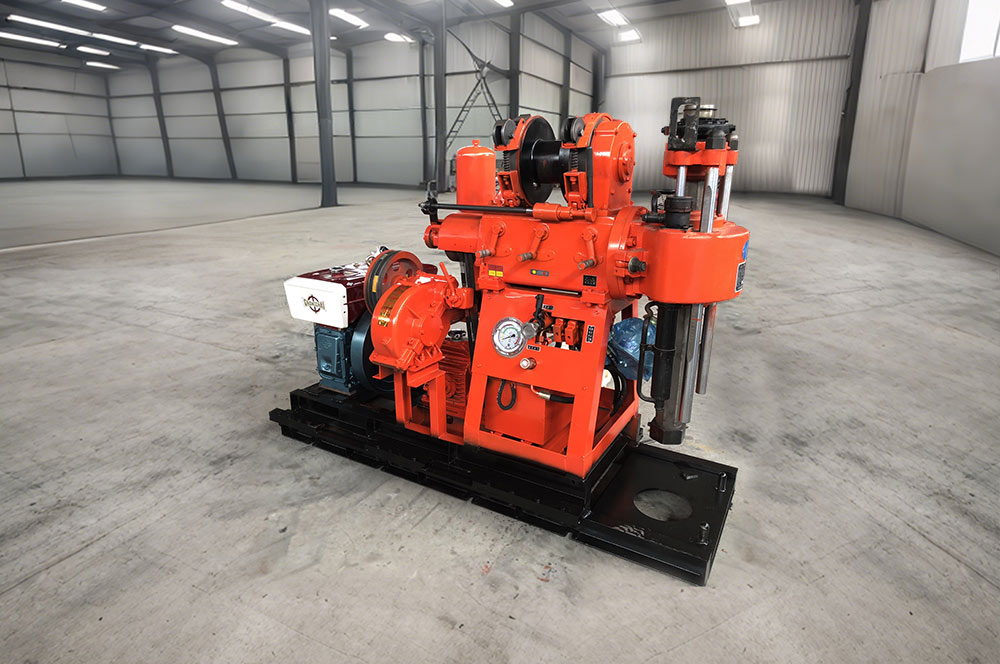

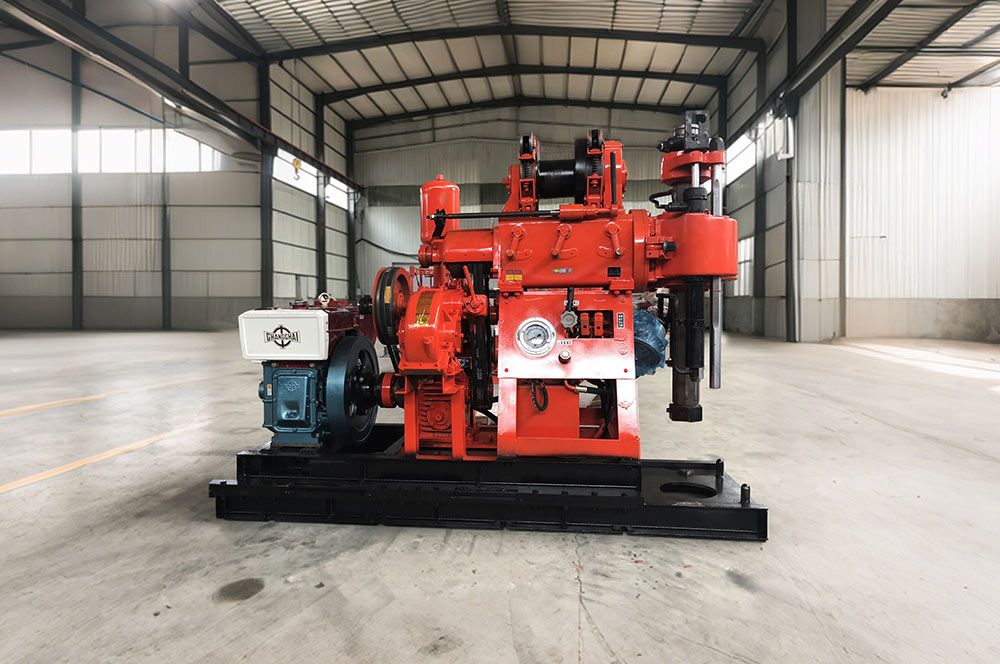

JTXY-200-1 Core Drill Rig

180m Max Depth | 150/130/110mm Hole Diameter | Dual Power (Diesel/Electric) | 25kN Lift

Product Overview

The JTXY-200-1 core drill rig is a highly versatile, lightweight machine engineered for geological exploration, mineral core sampling, foundation investigation, and small-scale water well projects. Designed for flexibility, it supports a 75°-90° borehole inclination and offers dual-power options to ensure reliable performance across various site environments.

Technical Specifications

Parameter	Specification
Model	JTXY-200-1
Max Drilling Depth	180 / 150 / 100 m
Opening Hole Diameter	150 / 130 / 110 mm
Borehole Inclination	75° - 90°
Max Vertical Lifting Weight	25 kN
Diesel Engine	ZS1115 (16.2 kW)
Electric Motor	11 kW
Drill Pipe Diameter	42 / 50 mm
Gear Oil Pump Pressure	20 MPa
Water Pump Displacement	95 / 77 L/min
Rig Weight (excl. power unit)	600 kg

Key Features

Flexible Drilling Depth: Offers configurable options of 180m, 150m, and 100m, providing tailored performance for diverse light-duty exploration tasks.
Multi-Angle Capability: The 75°-90° inclination range allows for both vertical and inclined drilling, ideal for complex site layouts and foundation testing.
Dual-Power Versatility: Equipped with a 16.2 kW diesel engine and an 11 kW electric motor option, ensuring seamless operation whether in remote fields or power-accessible sites.
Adaptable Tooling: Support for 42mm and 50mm drill pipes provides the flexibility to match tooling precisely to depth and ground conditions.
Stable Lifting Force: A 25kN maximum lifting capacity and 20 MPa system pressure ensure reliable handling of drill strings during routine operations.
