PRP: 80 kW / 100 kVA
Standby: 88 kW / 110 kVA
Engine: 6BT5.9-G2
Back to List

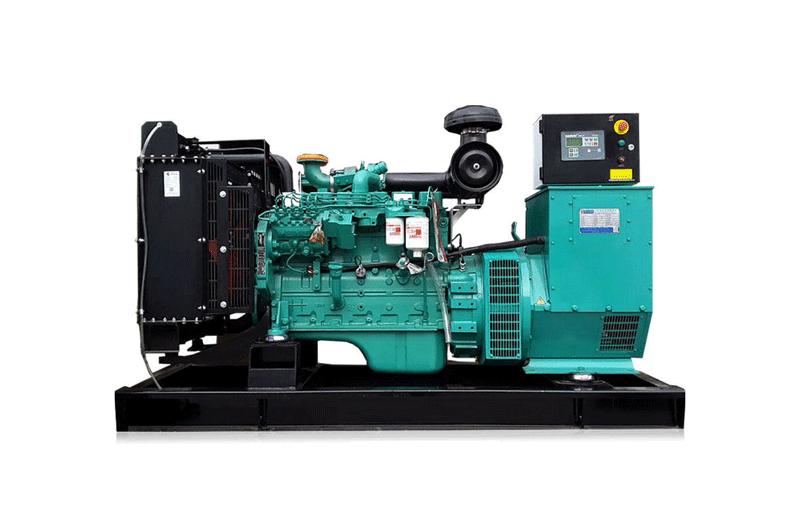

The JT-80KW Cummins Diesel Generator delivers 80 kW / 100 kVA prime power and 88 kW / 110 kVA standby power. Powered by the Cummins 6BT5.9-G2 turbocharged diesel engine, it provides 400/230 V, 50 Hz three-phase electricity for agricultural facilities, industrial workshops and remote backup power applications.
| Generator Model | JT-80KW Cummins |
| Prime Power | 80 kW / 100 kVA |
| Standby Power | 88 kW / 110 kVA |
| Voltage / Frequency | 400/230 V · 50 Hz |
| Engine Model | Cummins 6BT5.9-G2 |
| Rated Current | 144 A |
| Dimensions (L × W × H) | 3,600 × 1,400 × 1,900 mm |
| Dry Weight | 3,000 kg |
| Power Factor | 0.8 |
| Output Configuration | Three-Phase · 4-Wire |
| Engine Configuration | 6-Cylinder · Turbocharged |
| Engine Displacement | 5.9 L |
| Engine Speed | 1,500 rpm |
| Alternator | Brushless · Self-Excited |
| Insulation Class | Class H |

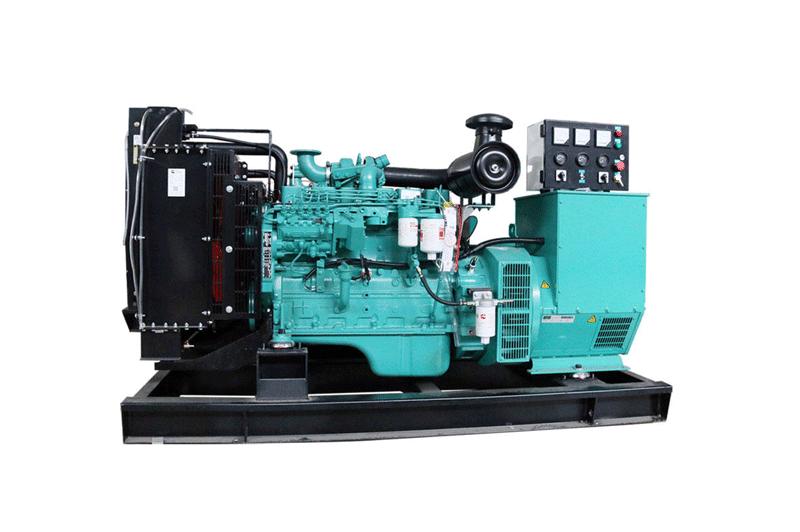

The JT-80KW combines a 5.9 L Cummins six-cylinder turbocharged diesel engine with a brushless alternator for three-phase power generation. Open-frame or silent-canopy options, ATS integration and control configurations can be discussed according to project requirements.
Get factory-direct pricing, technical specifications and FOB or CIF shipping options for your destination country.
Tell us your country, required power, voltage, application and operating hours. Open-frame, silent-canopy, ATS and control options can also be discussed.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
Cummins Turbocharged Engine: 6BT5.9-G2 six-cylinder engine for agricultural, commercial and industrial power generation.
80 kW Three-Phase Output: 400/230 V, 50 Hz electricity for selected machinery, facility loads and backup power requirements.
Flexible Installation Options: open-frame and silent-canopy configurations with optional ATS and control solutions.
Final generator ratings, dimensions, weight, fuel consumption and service requirements depend on the supplied configuration. Confirm the technical datasheet and applicable compliance documents before ordering.
