PRP: 100 kW / 125 kVA
Standby: 110 kW / 137.5 kVA
Engine: 6BTAA5.9-G2
Back to List

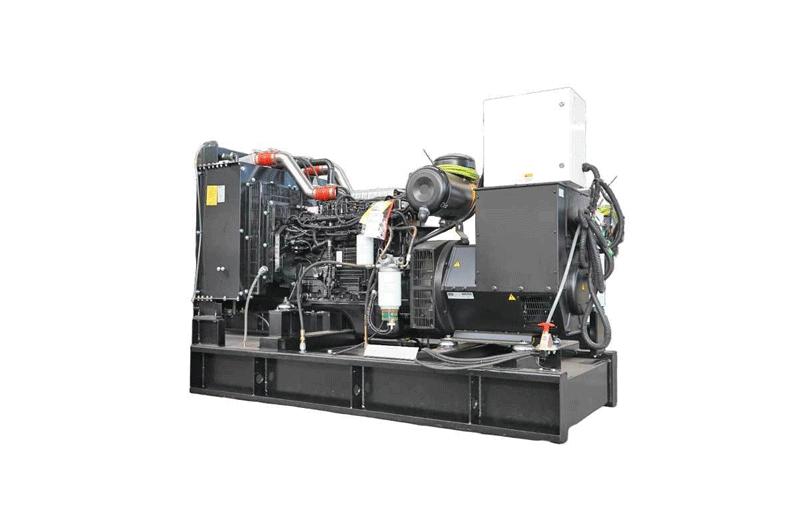

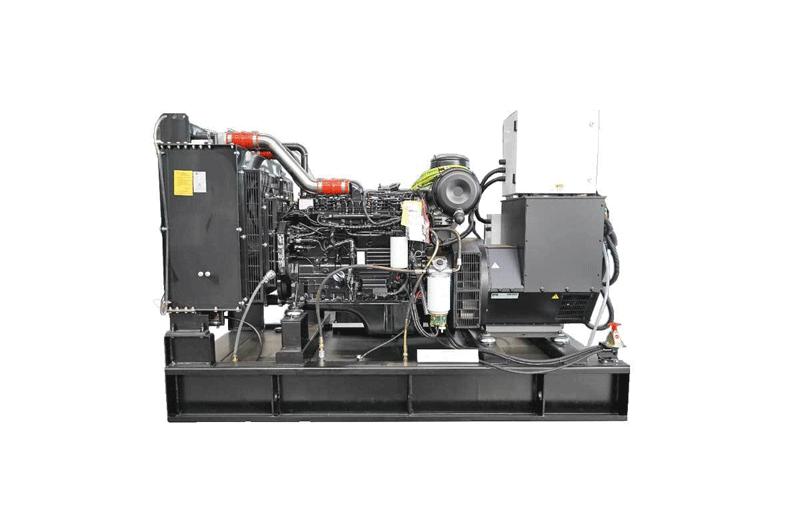

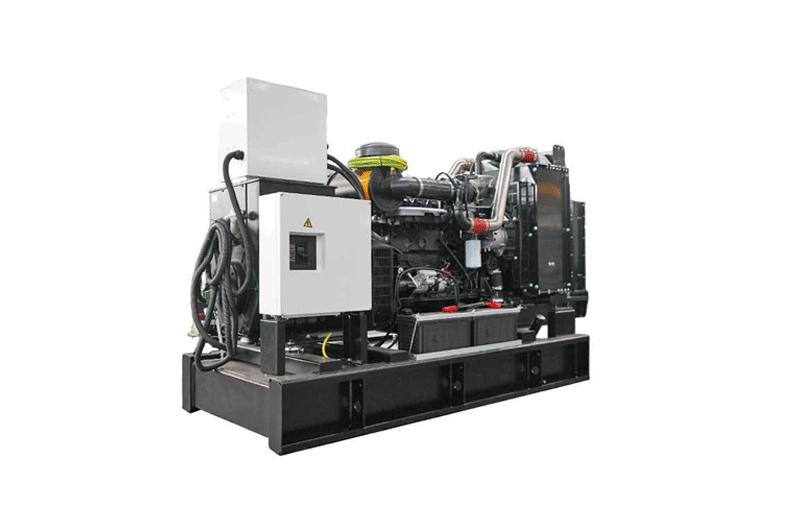

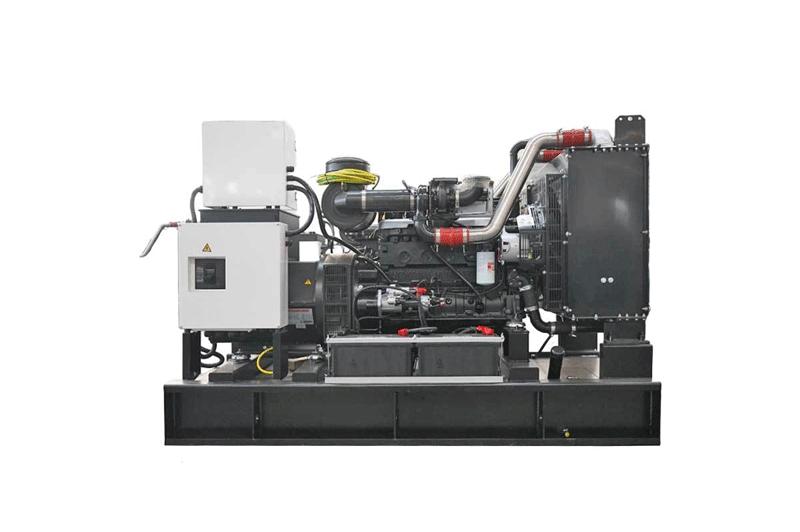

The JT-100KW Cummins Diesel Generator delivers 100 kW / 125 kVA prime power and 110 kW / 137.5 kVA standby power. Powered by the Cummins 6BTAA5.9-G2 turbocharged diesel engine, it provides 400/230 V, 50 Hz three-phase electricity for commercial buildings, industrial facilities and telecom backup power applications.
| Generator Model | JT-100KW Cummins |
| Prime Power | 100 kW / 125 kVA |
| Standby Power | 110 kW / 137.5 kVA |
| Voltage / Frequency | 400/230 V · 50 Hz |
| Engine Model | Cummins 6BTAA5.9-G2 |
| Rated Current | 180 A |
| Dimensions (L × W × H) | 3,800 × 1,500 × 2,000 mm |
| Dry Weight | 3,400 kg |
| Power Factor | 0.8 |
| Output Configuration | Three-Phase · 4-Wire |
| Engine Configuration | 6-Cylinder · Turbocharged & Aftercooled |
| Engine Displacement | 5.9 L |
| Engine Speed | 1,500 rpm |
| Alternator | HLF100 · Brushless |
| Insulation Class | Class H |
The JT-100KW combines a 5.9 L Cummins six-cylinder turbocharged and aftercooled diesel engine with a brushless alternator for three-phase power generation. ATS integration, silent-canopy options and customized control systems can be discussed according to project requirements.
Get factory-direct pricing, technical specifications and FOB or CIF shipping options for your destination country.
Tell us your country, required power, voltage, application and operating hours. ATS, enclosure and control options can also be discussed.
Send your inquiry through the form on this page or contact us on WhatsApp for a tailored quotation.
Cummins Turbocharged Engine: 6BTAA5.9-G2 six-cylinder engine for commercial and industrial power generation.
100 kW Three-Phase Output: 400/230 V, 50 Hz electricity for selected facility loads, machinery and standby power requirements.
Flexible Power Configuration: prime and standby ratings with optional ATS integration, enclosure and control solutions.
Final generator ratings, dimensions, weight, fuel consumption and service requirements depend on the supplied configuration. Confirm the technical datasheet and applicable compliance documents before ordering.
