Lifting height: 3-6 m
Max lifting capacity: 4000 kg
Min ground clearance: 280 mm
Back to List

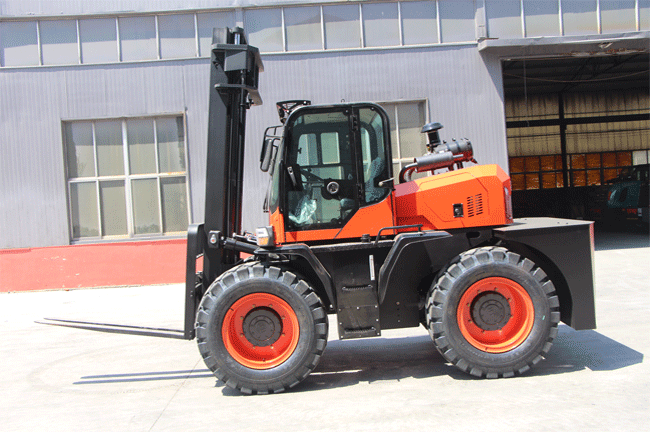

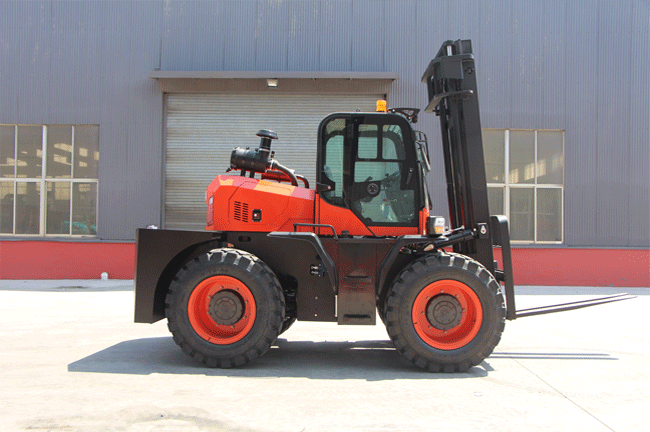

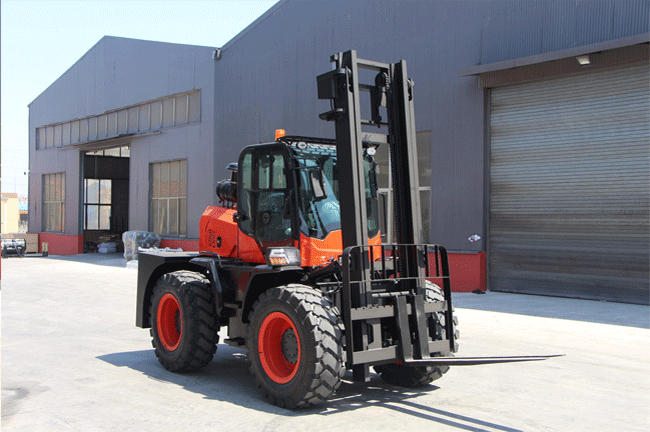

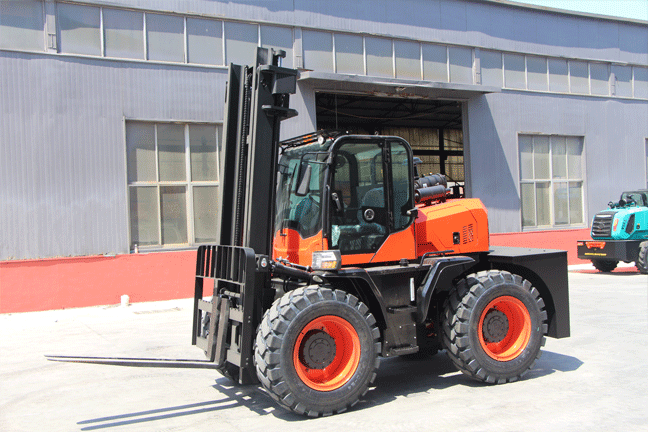

The JTYC40 Rough Terrain Forklift combines a 4,000 kg rated lifting capacity, 2,060 mm wheelbase and 4WD diesel drivetrain for outdoor material handling. Available with 4000 supercharged or 4102 diesel engines, this short-wheelbase model features heavy cast steel wheel reduction axles for construction yards, farms and industrial loading operations.
| Model | JTYC40 (Short Wheelbase) |
| Rated Load | 4,000 kg |
| Lift Height | 3,000–6,000 mm |
| Engine Options | 4000 Supercharged / 4102 Diesel |
| Drive Mode | Four-Wheel Drive (4WD) |
| Wheelbase | 2,060 mm |
| Vehicle Weight | ≥4,600 kg |
| Overall Dimensions | 4,050 × 1,950 × 2,470 mm |
| Max. Climbing Angle | ≤45° |
| Max. Travel Speed | 30 km/h |
| Minimum Ground Clearance | 280 mm |
| Axles | Heavy Cast Steel Wheel Reduction Axles |
| Tire Specification | 16/70-20 High-Pressure Off-Road Tires |
| Transmission Gears | 4 Forward / 4 Reverse |
| Gearbox | Dual High/Low-Speed Hydraulic Torque Converter |
| Cab | New Electrophoresis-Coated Luxury Rounded Cab |
Select a 4000 supercharged or 4102 diesel engine to suit your operating requirements. The heavy cast steel wheel reduction axles, dual high/low-speed hydraulic torque converter and 4-forward/4-reverse gearbox support material handling on suitable outdoor surfaces. Mast height options range from 3 to 6 m.
Get factory-direct pricing, 4-ton forklift configurations and FOB/CIF shipping quotations.
Share your load dimensions, required mast height and preferred engine through the inquiry form or WhatsApp.
4 Ton Short-Wheelbase Design: A 2,060 mm wheelbase and 4,050 mm machine length for outdoor loading and material movement.
Cast Steel Axles & 4WD: Heavy wheel reduction axles and off-road tires support demanding construction and industrial yard operations.
Flexible Diesel & Transmission Configuration: Two engine options and a high/low-speed hydraulic torque converter for different handling requirements.
Specifications follow the manufacturer-supplied YGCY-40 Short Axis Version, marketed as JTYC40. Rated lifting capacity depends on load center, mast height and the approved capacity plate. Maximum climbing angle is not a full-load operating guarantee.
